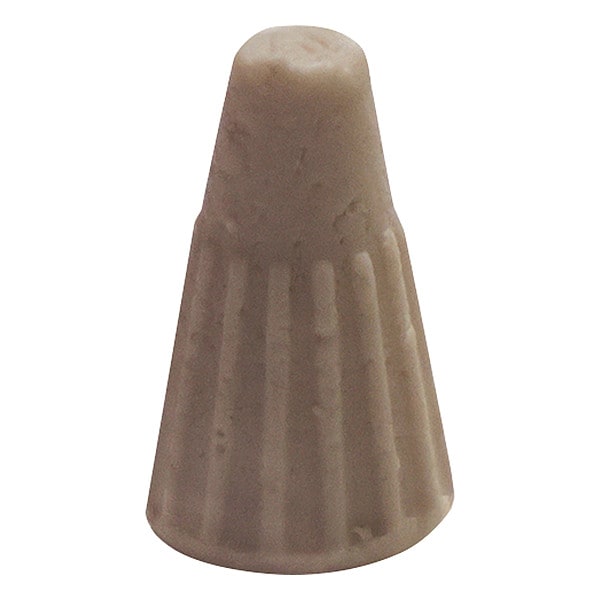

Twist-On Wire Connector, 14 AWG Max, White, Porcelain Insulation, 300 V
Mfr # EHD-114-104
Zoro # G3521351
product price: $6.19
/eaSold in multiples of 10 for $61.90
Key Features
Type
Twist-On
Color
White
Minimum Wire Size
18 AWG
Insulation Material
Porcelain
Maximum Voltage
300 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EHD-114-104
Zoro #
G3521351
UPC #
-
Country of Origin
United States
Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Height
1.0 in
Width
0.7 in
Outside Diameter
0.53 in
Overall Width
0.7 in
For Minimum Wire Size - Solid
12 AWG
Details
Item
Twist-On Wire Connector
Type
Twist-On
Color
White
Insulation Material
Porcelain
Maximum Voltage
300 V
Minimum Wire Combination
(2) 18 AWG
Maximum Wire Combination
(2) 14 AWG
Maximum Operating Temperature
1,200 Degrees F
Series
114
Standards
CSA Certified, UL Listed
Application
High Temperature
Wire Connector Style
Standard
Maximum Conductors
2
Compatible with Product Type
High Temperature
For Conductor Material
Aluminum, Copper, Tin-Plated Copper
Termination Style
Twist-On
Description
Twist-On Wire Connector, Color White, For Conductor Material Aluminum, Copper, Tin-Plated Copper, Maximum Operating Temperature 1,200 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Not Applicable, Contact Material Not Applicable, UL 94 Flammability Rating Not Applicable, Maximum Conductors 2, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Compatible with Product Type High Temperature
