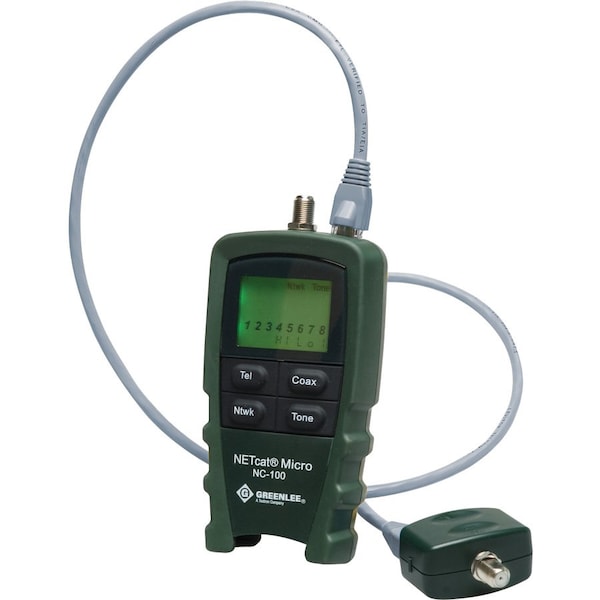

NetCat 100 Cable Tester, VDV Wiring

  • Mfr # NC-100

  • Zoro # G3235382

product price:
$
122.99
/ea
Free Shipping & Returns

Key Features

Display
LCD
For Use With
Designed For Standard Tone Probes, But Compatible With Precision Digital Greenlee Tone Probes
Application
Tests STP, UTP, and Coaxial Cables
Features
End-To-End Testing, Test LAN Wiring and Phone Lines
Includes
Cable, Carrying Case, Tester
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NC-100
Zoro #
G3235382
UPC #
-
Country of Origin
China

Dimensions

Depth
33.000 MM
Length
150.000 MM
Width
70.000 MM
Minimum Cable Length
2.000 To 3.000 MR (5.000 To 10.000 FT)
Manufacturer Warranty Length
1 yr
Battery Size
9V

Details

Item
Cable Tester
Display
LCD
For Use With
Designed For Standard Tone Probes, But Compatible With Precision Digital Greenlee Tone Probes
Application
Tests STP, UTP, and Coaxial Cables
Features
End-To-End Testing, Test LAN Wiring and Phone Lines
Includes
Cable, Carrying Case, Tester
Connector Type
F-Type, RJ12, RJ45
Adapter Type
F-Type, RJ45
Waterproof
Yes
Line Polarity Indicator
Yes
Data Safe Monitor
Yes
Standards
CE
Product Type
Cable Network Tester
Type
Micro Digital Voice Data And Video Wiring
Buttons
Four Momentary Contact Push Button
Humidity
0 To 95 PCT Non-Condensing
Battery
9 V Alkaline Battery (PP3)
Display LCD
Icon And Seven Segment Type
Backlight
Green LED
Pair Tracing Tones
Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates
Standard
TIA/EIA
Storage/Operating Temperature
-10 To 60°C/0 - 50°C
Frequency Rating
577 HZ And 983 HZ
Interface Connections
RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors
Wire Mapping Detections
Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs
Minimum Operating Temperature
32 Degrees F
Adapters Included
F-Type, RJ45
Maximum Operating Temperature
122 Degrees F
Data Logger
No
Maximum Operating Humidity
90 %
Battery Chemistry
Alkaline
Display Screen Type
LCD

Description

Cable Tester, Adapters Included F-Type, RJ45, Connector Type F-Type, RJ12, RJ45, Data Safe Monitor Yes, Display Screen Type LCD, For Use With Designed For Standard Tone Probes, But Compatible With Precision Digital Greenlee Tone Probes, Includes Cable, Carrying Case, Tester, Features End-To-End Testing, Test LAN Wiring and Phone Lines, Wire Mapping Detections Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs, Waterproof Yes, Product Type Cable Network Tester, Data Logger No
