Shop TESA BROWN & SHARPE

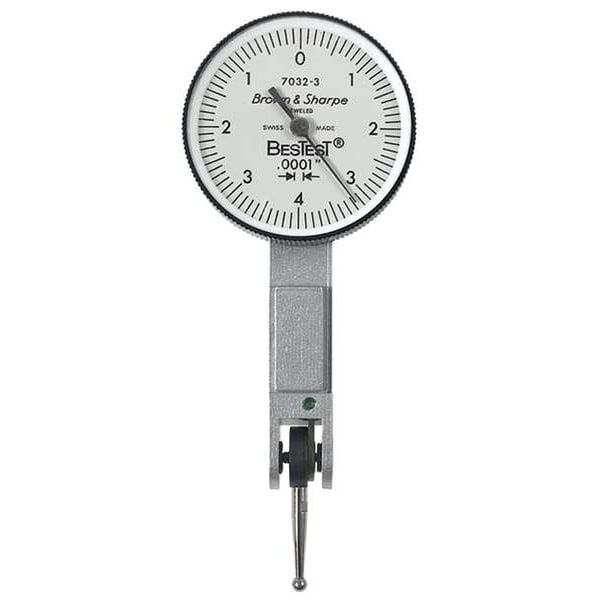

Dial Test Indicator, Hori, 0 to 0.008 In

  • Mfr # 599-7032-3

  • Zoro # G0597344

product price:
$
368.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0001 in
Range
0 in to 0.008 in
Features
Bidirectional with Automatic Reversal; Continuous Clockwise Pointer Rotation; Jeweled Movement with 7 Rubies
Accuracy
+/- 0.0001 in
Includes
Contact Point Wrench, Rectangular Bar, Swivel Clamp, Wrench
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
599-7032-3
Zoro #
G0597344
UPC #
622419459806
Country of Origin
China

Dimensions

Contact Point Length
1/2 in
Contact Point Dia.
0.08 in
Dial Size
1 in
Stem Thread Size
M1.4
Dimension Type
Inch
Stylus Length
0.5 in
Contact Point Diameter
0.08 in
Stylus Diameter
0.08 in

Details

Graduations
0.0001 in
Range
0 in to 0.008 in
Features
Bidirectional with Automatic Reversal; Continuous Clockwise Pointer Rotation; Jeweled Movement with 7 Rubies
Accuracy
+/- 0.0001 in
Includes
Contact Point Wrench, Rectangular Bar, Swivel Clamp, Wrench
Indicator Style
Horizontal
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
BESTEST
Dial Reading
0-4-0
Standards
DIN 2270, EN ISO 9493
Dial Color
White
Item
Horizontal Dial Test Indicator
Range per Revolution
0.0080 in
Long Form Calibration Certificate
No
Contact Point Material
Steel
Case Type
Case
Test Indicator Style
Horizontal
Number of Indicators
1
Swivel Angle
240 Degrees
Non-Magnetic Tip
No
Included Certification
Certificate of Accuracy and Traceability
Includes Dovetail Mount Attachments
Yes
Non-Conductive Tip
No
Operation Type
Lever-Style
Minimum Measurement - Inch
0 in
Mounting Style
Dovetail
Contact Point Shape
Ball
Includes Case
Yes
Maximum Measurement - Inch
0.008 in
Product Type
Horizontal Dial Test Indicator
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.008 in

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.008 in, Graduations 0.001 in, Long Form Calibration Certificate No, Contact Point Dia. 0.08 in, Dial Color White, Dial Reading 0-4-0, Dial Size 1 in, Dimension Type Inch, Included Certification Certificate of Accuracy and Traceability, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.008 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.0080 in, Series BESTEST
