  13. Surface Roughness Tester, Portable,

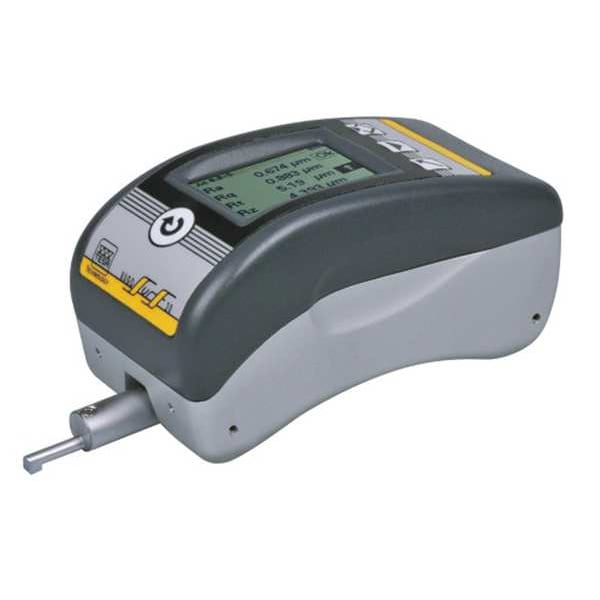

Tesa Brown & Sharpe Surface Roughness Tester, Portable, 06930013 - main

Surface Roughness Tester, Portable,

  • Mfr # 06930013

  • Zoro # G6133461

product price: $2,786.99
/ea
Free Shipping & Returns

Key Features

Measuring Range
400 micron m/0.0157 in, 16 mm/0.63 in
Profile
No
Number of Sampling Spans
2
Includes
Power Supply, Master Specimen, Manual, Height Gauge Adapter Lug
Probe
5 micron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
06930013
Zoro #
G6133461
UPC #
622419471266
Country of Origin
Italy

Dimensions

Dimensions (In.)
4.8 x 2.36 x 2.44
Arbitrary Length (In.)
4.8
Cut Off Length (In.)
.01/.03/.10
Transverse Cutoff Length
0.25 mm, 0.8 mm, 2.50 mm
Sampling Range Arbitrary Length
4.8 mm
Dimensions - Display Unit
122 mm x 60 mm x 62 mm
Dimensions - Drive Unit
122 mm x 60 mm x 62 mm
Display Screen Size
2 in
Probe Tip Radius
5 um
Sampling Length
0.25 mm / 0,8 mm / 2,5 mm

Details

Item
Portable Surface Roughness Tester with Onboard Display
Measuring Range
400 micron m/0.0157 in, 16 mm/0.63 in
Profile
No
Number of Sampling Spans
2
Includes
Power Supply, Master Specimen, Manual, Height Gauge Adapter Lug
Probe
5 micron
Drive Unit
Standard
Tester Series
RugoSurf 20
Analysis Graph
BAC, ADC, Profile-R
Features
Each Parameter Can Be Activated Individually Or Not, Possible Tolerancing Of Parameters Values, Storage Of The Measured Parameters, Direct Printing To A Dot Matrix Printer
Detector
0.75 mN
Number of Parameters Measured
11
Display Resolution
160 x 100
Measuring Range (In.)
0.0157 in, 0.63 in
Compatible Data Output Cable
Mfr. No. 4760099
Data Output Connection Type
USB
Measuring Condition Standards
ISO3274
Profile Resolution
0.001micron m
Display Type
LCD
IP Rating
IP67
Drive Unit Principle
Standard
Measuring Range (mm)
400 micron m, 16.00 mm
Parameters Measured
Ra, Rq, Rt, Rc, RSm, RPc, Rmr, Rz, Rmax, PPc, Pmr
Data Output Type
Cabled
Detector Measuring Force
0.75 mN
Includes Printer
No
Includes Case
No
Compatible Memory Card
None
Measuring Range Ra
0 to 100 micron m
Product Type
Portable Surface Roughness Tester with Onboard Display
Rz Measured - Maximum
500 micronm
Ra Measured - Maximum
100 micronm
SPC Output
Yes
Probe Sensor Type
Inductive
Millimeters Measured - Maximum
17.5
Ra Measured - Minimum
0.02 micronm
Rz Measured - Minimum
0.1
Millimeters Measured - Minimum
0.25
Inches Measured - Minimum
9.842
Inches Measured - Maximum
688.976

Description

Portable Surface Roughness Tester with Onboard Display, Features Each Parameter Can Be Activated Individually Or Not, Possible Tolerancing Of Parameters Values, Storage Of The Measured Parameters, Direct Printing To A Dot Matrix Printer, Measuring Range 400 micron m/0.0157 in, 16 mm/0.63 in, Analysis Graph BAC, ADC, Profile-R, Cut Off Length (In.) .01/.03/.10, Number of Sampling Spans 2, Arbitrary Length (In.) 4.8, Dimensions (In.) 4.8 x 2.36 x 2.44
