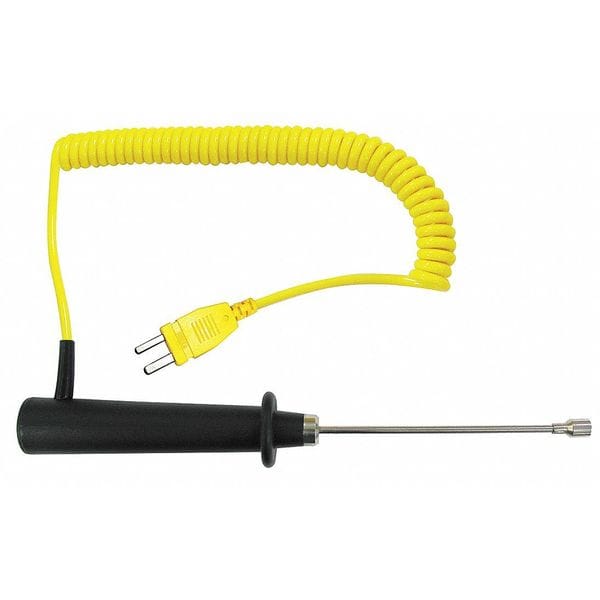

Temperature Probe, Mini Plug, Type K

  • Mfr # CK11M

  • Zoro # G4745474


product price: $42.39
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 500 Degrees
Temp. Range (C)
-50 Degrees to 250 Degrees
Probe Length
4 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CK11M
Zoro #
G4745474
UPC #
637623200014
Country of Origin
Korea, Republic of

Dimensions

Probe Length
4 in
Probe Wire Length
3 ft 3 in
Wire Length
3 ft. 3"
Manufacturers Warranty Length
90 Days Limited
Probe Dia.
5/16 in
Probe Diameter
0.313 in
Probe Size
5/16 in x 4 in
Cable Length
3 ft 3 in
Probe Tip Diameter
0.13 in

Details

Item
Surface Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 500 Degrees
Temp. Range (C)
-50 Degrees to 250 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Sub Mini
Probe Contact Material
Stainless Steel
Accuracy
+/-4 Degrees F
Use
Air or Surface
Response Time
4.5 sec to 90% of Reading
Probe Material
Stainless Steel
Includes
Plug and Probe
Temperature Measuring Element
K Thermocouple
Probe Bend
Straight
Probe Sheath Material
Stainless Steel
For Air
No
For Liquids and Gels
No
Handle Type
Straight Handle
For Solids
No
Temperature Range
-58 Degrees to 500 Degrees F/-50 Degrees to 250 Degrees C
Maximum Temperature F
500 Degrees F
Head Material
Stainless Steel
Maximum Temperature C
250 Degrees C
Junction Type
Exposed
Cable Material
Polyurethane Jacket
Minimum Temperature C
-50 Degrees C
Tip Style
Rounded
For Application
Surface
Minimum Temperature F
-58 Degrees F
Fitting Type
Bayonet
For Surfaces
Yes
Thermocouple Type
Type K
Handle Material
Plastic
Connector Type
Sub Mini
For Gases
No
Includes Thermowell
No
Maximum Temperature °F
500 Degrees F
Minimum Temperature °C
-50 Degrees C
Maximum Temperature °C
250 Degrees C
Minimum Temperature °F
-58 Degrees F
Maximum Temperature °F
500 Degrees F
Minimum Temperature °F
-58 Degrees F
Maximum Temperature °C
250 Degrees C
Minimum Temperature °C
-50 Degrees C

Description

Surface Temperature Probe, Type K, Exposed, For Application Surface, Mini Plug, Probe Size 5/16 in x 4 in, Cable Length 3 ft 3 in, -58 Degrees to 500 Degrees F/-50 Degrees to 250 Degrees C, Thermocouple
