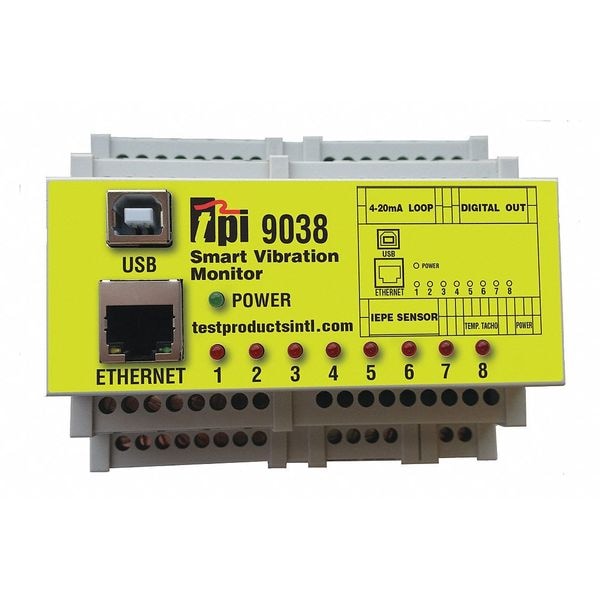

Test Products International Vibration Meter, 720mm/sec Velocity 9038 - main

Vibration Meter, 720mm/sec Velocity

  • Mfr # 9038

  • Zoro # G0228127

product price: $1,508.99
/ea
Free Shipping & Returns

Key Features

Acceleration Range
1 to 1000 mV/g
Frequency Range (Hz)
2 Hz to 25.6 kHz
Temp. Range (F)
32 Degrees to 122 Degrees
Velocity
720mm/sec
Bearing/Gear Check
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038
Zoro #
G0228127
UPC #
637623090387
Country of Origin
Korea, Republic of

Dimensions

Manufacturers Warranty Length
3 yr
Manufacturer Warranty Length
3 yr

Details

Item
Vibration Meter
Acceleration Range
1 to 1000 mV/g
Frequency Range (Hz)
2 Hz to 25.6 kHz
Temp. Range (F)
32 Degrees to 122 Degrees
Velocity
720mm/sec
Bearing/Gear Check
Yes
Display
Integrated
Accuracy
+/-5%
Data Hold
No
Special Features
(8) Station Monitoring Interface
Auto Power Off
Yes
Temp. Range (C)
0 Degrees to 50 Degrees
Calibration Certificate
Yes
Interface
USB
Minimum Displacement Measured
0.01 mi
Minimum Operating Temperature
32 Degrees F
Number of Records Stored
4,096
Acceleration Max Resolution
50 g
Maximum Operating Temperature
131 Degrees F
Frequency Ranges
2 Hz to 25.6 kHz
Minimum Velocity Measured
0.001 in/sec
Maximum Velocity Measured
999.9 in/sec
Digital Display Screen Type
No Display
Testing Functions
Acceleration, Velocity
Calibration Certificate Type
Available Separately
Features
(4) Accelerometer Channel, 24V DC Switched Output, Ethernet Socket, Tacho Input, Temperature Input
Velocity Max Resolution
0.001 in/sec
Maximum Displacement Measured
20,000 mi
Alert Type
Vibration
Acceleration Measurement - Minimum
1 mV/g
Displacement Max Resolution
0.01 mi
Acceleration Measurement - Maximum
1,000 mV/g

Description

Vibration Meter, Accuracy +/-5 Percent, Acceleration Measurement - Minimum 1 mV/g, Acceleration Measurement - Maximum 1,000 mV/g, Number of Records Stored 4,096, Maximum Velocity Measured 999.9 in/sec, Minimum Velocity Measured 0.001 in/sec, Acceleration Max Resolution 50 g, Displacement Max Resolution 0.01 mi, Maximum Displacement Measured 20,000 mi, Minimum Displacement Measured 0.01 mi, Velocity Max Resolution 0.001 in/sec, Auto Power Off Yes, Alert Type Vibration
