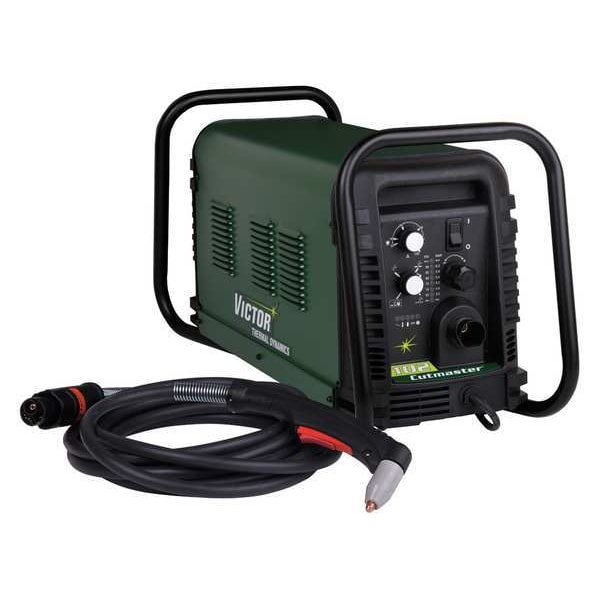

Plasma Cutter, 100A, 1-3/4in Cap., 70psi

Mfr # 1-1330-1
Zoro # G7467494

5,162.99

Free Shipping & Returns

Key Features

Welding Processes

Plasma Cutting

Application

Plasma Cutting Both Ferrous and Nonferrous Metals Up to 1-3/4 in Tick

Rated Output

100 A

Design

Inverter

Overall Depth (In.)

30 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1-1330-1
Zoro #: G7467494
UPC #: 699488003100
Country of Origin: Mexico

Dimensions

Overall Depth (In.): 30 in
Cable Length (Ft.): 10
Overall Width (In.): 12 in
Overall Height (In.): 15 in
Cutting Cable Length: 20 ft
Overall Height: 15 in
For Maximum Material Thickness: 1 3/4 in
For Minimum Material Thickness: 1/8 in
Overall Width: 12 in
Power Cord Length: 10 ft
Ground Cord Length: 10 ft
Overall Depth: 30 in
For Material Thickness - Maximum: 1 3/4 in
For Material Thickness - Minimum: 1/8 in

Details

Item: Plasma Cutter
Welding Processes: Plasma Cutting
Application: Plasma Cutting Both Ferrous and Nonferrous Metals Up to 1-3/4 in Tick
Rated Output: 100 A
Design: Inverter
Series: Cutmaster 102
PSI: 70
Input (Amps): 29/45A
Includes: Consumables Kit, SL100 75 Degrees hand torch with 20 ft Lead, Work Lead with Ground Clamp
OCV: 320
Duty Cycle: 60% @ 100A
Input Voltage: 208/230V AC
Cutting Capacity (In.): 1 3/4 in
Required Air Flow: 7.5 cfm
For Material Type: Mild Steel, Stainless, Aluminum
Color: Green
Phase: Single
Cutting Configuration: Plasma Cutting
Plasma Cutting Output @ Duty Cycle: 100 A, 60%, 70 A, 100%, 80 A, 80%
Input Frequency: 50/60 Hz
Plasma Torch Type: Handheld
Max. Input Current: 95 A @ 230V (Single-Phase)
Effective Input Current: 208-230V, 1 ph
Maximum Pressure - Air Compressor: 70 psi
Plasma Cutter Model: 1-1330-1
Plug Type: Bare Leads
Weight: 28.1 kg
Maximum Output Current: 100 A
Open Circuit Voltage: 320 V
Plasma Cutting Minimum Output Current: 10 A
Process: Plasma Cutting
Amperage - Minimum: 100 A
Plasma Cutter Series: Cutmaster 102
Input Air Pressure - Minimum: 70 psi
Maximum Input Current: 95 A @ 230V (Single-Phase)
Rated Output @ Duty Cycle: 100 A, 60%, 70 A, 100%, 80 A, 80%
Minimum Input Air Flow Rate: 7.5 cfm
Amperage - Maximum: 100 A
Input Air Pressure - Maximum: 70 psi

Description

Plasma Cutter, Cutting Configuration Plasma Cutting, Effective Input Current 208-230V, 1 ph, For Material Type Mild Steel, Stainless, Aluminum, For Maximum Material Thickness 1 3/4 in, For Minimum Material Thickness 1/8 in, Input Frequency 50/60 Hz, Input Voltage 208/230V AC, Max. Input Current 95 A @ 230V (Single-Phase), Open Circuit Voltage 320 V, Phase Single, Plasma Cutter Model 1-1330-1, Maximum Output Current 100 A, Plasma Cutting Minimum Output Current 10 A
