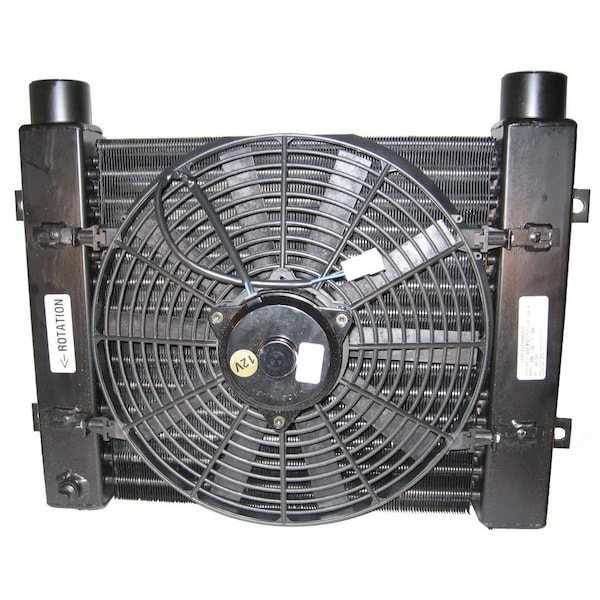

MF Series: 3-55 GPM, 13.88 L x 15.75 W x 4.99, 1 NPT Ports
Mfr # 258190
Zoro # G2513020
product price:
$
1,543.99
/ea
Free Shipping & Returns
Key Features
HP Heat Removed
5.6K-11K
Voltage
12 VDC
Flow Ranges (GPM)
20149
Motor Amps
12.5
Max. Pressure (PSI)
300
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 258190
- Zoro #
- G2513020
- UPC #
- 615986039816
- Country of Origin
- United States
- HP Heat Removed
- 5.6K-11K
- Voltage
- 12 VDC
- Flow Ranges (GPM)
- 20149
- Motor Amps
- 12.5
- Max. Pressure (PSI)
- 300
- Max. Temp.
- 350 Degrees F
- Weight
- 25 lbs.
Description
Features: Same as M Series with DC Fan or Hydraulic Motor 3/8” Tube Size Aluminum Fins Low AMP Draw 12 or 24 Volt DC Motor Heavy Duty Construction Optional Serviceable Relief Bypass Valve Optional Fan Control Switch Long Life Hydraulic Motors Heat Removal TO 50,000 BTU/Hr. Oil Flows to 150 GPM Mounting Brackets Included SAE, NPT or 37° Flare Oil Connections Rugged Steel Manifolds, Oil flows to 175 GPM. Heavy duty construction. Mounting brackets included- no straps required. Operating pressure 300 PSI. Maximum temperature 350° F. Thermal performance is based on ISO 32 oil with 40F approach (oil temperature out - ambient air temp.).
