Thern

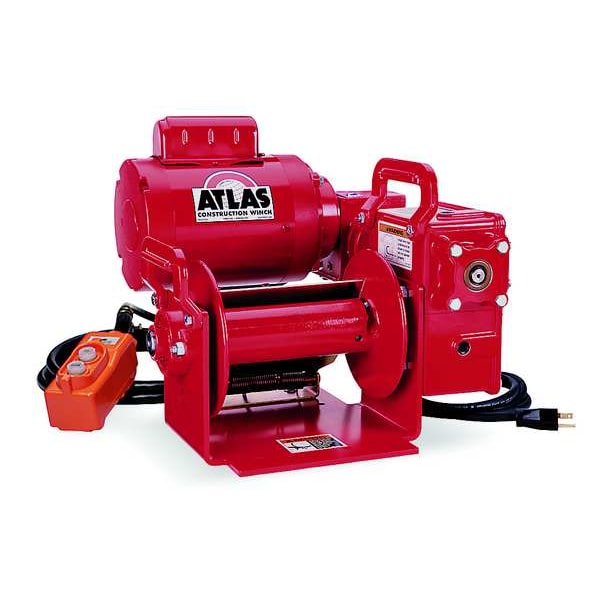

Electric Winch, 1-1/3HP, 115VAC

product price: $3,428.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Included Rope Dia. 1/4 in, 5/16 in
  • Overall Length 16 5/8 in
  • Winch Gear Type Worm
  • Free Spooling Clutch Type None
  • Voltage Rating 115V AC
See all product information

Product Information

Dimensions

Included Rope Dia. 1/4 in, 5/16 in
Overall Length 16 5/8 in
Manufacturers Warranty Length 2 yr
Overall Height 14 1/4 in
Control Pendant Cord Length 16 ft
Overall Width 17 3/4 in
Maximum Line Diameter 3/10 in
Recommended Line Diameter 3/10 in
Controller Cord Length 8 ft
Included Line Diameter 3/10 in
Mfr. Warranty Length 2 yr Limited

Details

Winch Gear Type Worm
Free Spooling Clutch Type None
Voltage Rating 115V AC
Rope Material Rope Not Included
Full Load Line Speed 8.0 fpm
Gear Type Worm
Clutch Type No Clutch
Motor HP 1.3 hp
Item Electric Winch
Clutch Release No
Mechanical Brake Yes
Drum Capacity for 1/4 In. Cable 280 ft
Electric Winch Item Electric Winch
1st Layer Load Capacity 2,000 lb
Full Load Amps 16 A
Winch Gear Ratio 160:1
Winch Type Lifting, Pulling
Series 4WP2 Series
Pulley Block No
No Load Line Speed 8 fpm
Drum Capacity for 5/16 In. Cable 190 ft
1st Layer Line Speed 8 fpm
1st Layer Line Pull 2000 lb.
Gear Ratio 160:1
Includes Handles and Large Wire Rope Storage, 16' Power Cord and 16' Penant Control Cord
Motor Horsepower 1 1/4 hp
Body Material Cast Aluminum
Color Red
Included Components Brake
Phase 1
Number of Gear Settings 1
Product Type Electric Winch
Fully Wound Load Capacity 800 lb
Number of Speeds 1
Compatible Line Wire Rope
Controls Pendant
Resistance Properties Corrosion Resistant
Body Finish Zinc Plated
Control Type Wired Control
Maximum Current 16 A
Maximum Lifting Capacity 2,000 lb
Operation Lifting
Includes Brake Brake Included
Max Drum Capacity per Line Dia 280 ft per 1/4 in
Body Type Enclosed Gears

Description

Electric Winch, 1st Layer Line Speed 8 fpm, 1st Layer Load Capacity 2,000 lb, Fully Wound Load Capacity 800 lb, Operating Voltage 115V AC, Number of Speeds 1, Motor Horsepower 1 1/4 hp, Maximum Current 16 A, Number of Gear Settings 1, Gear Ratio 160:1, Gear Type Worm, Line Length Not Applicable, Clutch Type No Clutch, Control Type Wired Control, Controls Pendant, Body Material Cast Aluminum, Body Type Enclosed Gears, Color Red, Compatible Line Wire Rope, Controller Cord Length 8 ft
