Shop All Electric Winches
Thern

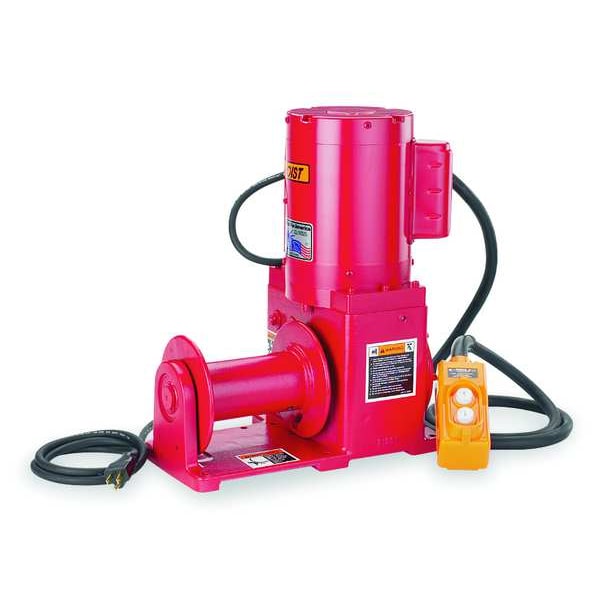

Electric Winch, 1-1/5HP, 115VAC

product price: $2,800.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Winch Type Lifting, Pulling
  • Voltage Rating 115V AC
  • 1st Layer Load Capacity 2,000 lb
  • Motor HP 1.3 hp
  • 1st Layer Line Speed 13 fpm
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Control Pendant Cord Length 6 ft
Overall Length 14 3/8 in
Included Rope Dia. 5/16 in
Overall Height 17 7/16 in
Overall Width 8 7/8 in
Maximum Line Diameter 3/10 in
Controller Cord Length 6 ft
Included Line Diameter 3/10 in
Recommended Line Diameter 3/10 in
Mfr. Warranty Length 2 yr Limited

Details

Electric Winch Item Electric Winch
Winch Type Lifting, Pulling
Voltage Rating 115V AC
1st Layer Load Capacity 2,000 lb
Motor HP 1.3 hp
1st Layer Line Speed 13 fpm
Rope Material Rope Not Included
Full Load Amps 16 A
Winch Gear Type Worm
Free Spooling Clutch Type None
Mechanical Brake Yes
Pulley Block No
Series 477 Series
Gear Type Worm
Clutch Type No Clutch
Drum Capacity for 5/16 In. Cable 90 ft
No Load Line Speed 13 fpm
1st Layer Line Pull 2000 lb.
Winch Gear Ratio 119:1
Item Electric Winch
Clutch Release No
Drum Capacity for 1/4 In. Cable 130 ft
Full Load Line Speed 13.0 fpm
Gear Ratio 119:1
Max Drum Capacity per Line Dia 90 ft per 5/16 in
Compatible Line Wire Rope
Operation Lifting
Number of Gear Settings 1
Fully Wound Load Capacity 1,200 lb
Included Components Brake
Product Type Portable Electric Winch
Maximum Lifting Capacity 2,000 lb
Number of Speeds 1
Motor Horsepower 1 1/4 hp
Controls Pendant
Color Red
Includes 6 ft. Power Cord
Control Type Wired Control
Includes Brake Brake Included
Body Type Enclosed Gears
Phase 1
Maximum Current 16 A
Resistance Properties Corrosion Resistant
Body Material Cast Aluminum
Body Finish Zinc Plated

Description

Electric Winch, 1st Layer Line Speed 13 fpm, 1st Layer Load Capacity 2,000 lb, Fully Wound Load Capacity 1,200 lb, Operating Voltage 115V AC, Number of Speeds 1, Motor Horsepower 1 1/4 hp, Maximum Current 16 A, Number of Gear Settings 1, Gear Ratio 119:1, Gear Type Worm, Line Length Not Applicable, Clutch Type No Clutch, Control Type Wired Control, Controls Pendant, Body Material Cast Aluminum, Body Type Enclosed Gears, Color Red, Compatible Line Wire Rope, Controller Cord Length 6 ft
