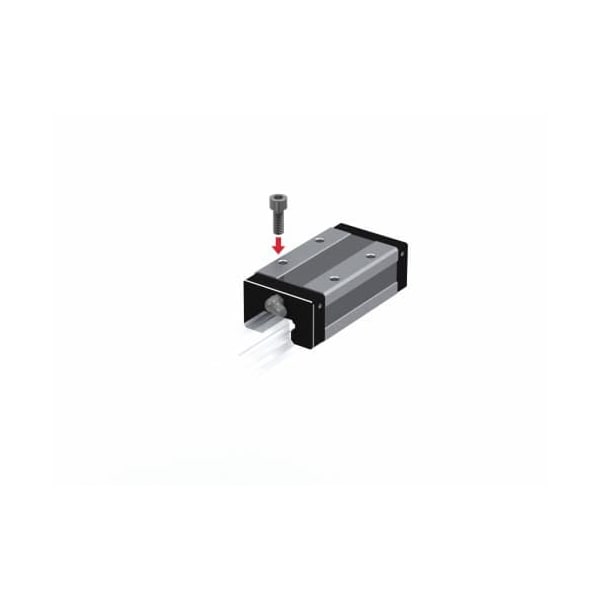

Linear Guide Carriage, 140 mm L, 86 mm W
Mfr # SHS45V1SS
Zoro # G907867925
product price:Â
$
581.99
/ea
Free Shipping & Returns
Key Features
Carriage Height
51.1 mm
Carriage Width
86 mm
Roller Material
Carbon Steel
Carriage Length
140 mm
Carriage Material
Carbon Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SHS45V1SS
- Zoro #
- G907867925
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Carriage Height
- 51.1 mm
- Carriage Width
- 86 mm
- Carriage Length
- 140 mm
- Dimension N
- 10.5 mm
- Dimension L1
- 106 mm
- Dimension F
- 105 mm
- Dimension B
- 60 mm
- For Rail Width
- 45 mm
- Overall Height
- 60 mm
- Carriage Mounting Hole Size
- M10 x 15
- Manufacturer Size
- 45
- Mounting Hole Size
- M10 x 15
- Combined Carriage and Rail Height
- 60 mm
Description
Linear Guide Carriage, Carriage Height 51.1 mm, Carriage Length 140 mm, Carriage Width 86 mm, Carriage Material Carbon Steel, Roller Material Carbon Steel, Radial Load - Maximum 82.8 kN, Axial Load - Maximum Not Applicable, Manufacturer Size 45, Dynamic Load Capacity 82.8 kN, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 45 mm, For Use With Profile Rail, Static Load Capacity 126 kN, Combined Carriage and Rail Height 60 mm, Series SHS-V
