This item is Discontinued.

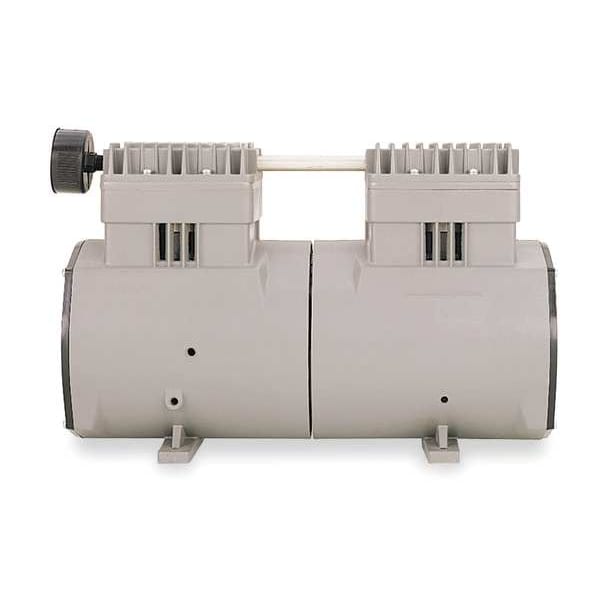

Thomas Piston Air Compressor/Vacuum Pump, 1HP 2807CE72

Piston Air Compressor/Vacuum Pump, 1HP (Discontinued)

  • Mfr # 2807CE72
  • Zoro # G2115592
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2807CE72
Zoro #
G2115592
UPC #
094700357502
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
15.75 in
Overall Height
10.062 in
Overall Width
7.25 in
Stroke Length
11/16 in
Cord Length
8 ft

Details

Item
Piston Air Compressor/Vacuum Pump
HP
1 hp
Voltage
115V AC
Full Load Amps
8.5
Max. PSI Cont./Int.
50/120
Free Air CFM @ 0 PSI
6.6
Free Air CFM @ 50 PSI
4.65
Max. Vacuum
25 in Hg
Free Air CFM @ 0 In. Hg
6.6
Free Air CFM @ 10 In. Hg
2.66
Valve
Corrosion Resistant Sandwich
Free Air CFM @ 100 PSI
3.05
Motor Type
Shaded Pole, Thermally Protected with High Torque Start Winding
RPM
1750
Finish
Paint
Standards
UL
Lubrication Type
Oil Free
Thermal Protection
Yes
Temp. Range
104 Degrees to 50 Degrees F
Free Air CFM @ 20 In. Hg
0.88
Free Air CFM @ 20 PSI
5.9
Cylinder Material
Aluminum
Hz
60
Phase
Single
Power Cord
Yes
Sound Rating
63 dBA @ 60 psi
Number of Cylinders
2
Maximum Continuous Pressure
50 psi
Piston Type
WOB-L
Maximum Speed
1,700 RPM
Outlet Type
NPT
Maximum Operating Temperature
104 Degrees F
Inlet Type
NPT
Maximum Intermittent Pressure
120 psi
Valve Material
Stainless Steel
Output Power
1 hp
Current Rating
8.5 A
Maximum Pressure Cont/Int
50 psi / 120 psi
Sound Level
63 dBA
Pump Type
WOB-L Piston
Minimum Operating Temperature
50 Degrees F
Frequency
60 Hz
Air Tank Style
Tankless
Maximum Vacuum
25 in Hg
Duty Cycle
Continuous
Free Air Flow Rate
3.38 cfm
Power Source
Corded Electric
Compressor Pump Style
Rocking
Valve Type
Corrosion Resistant Sandwich
Mounting Style
Thru-Bolt
Electrical Connection
Cord With Plugs

Description

Piston Air Compressor/Vacuum Pump, Lubrication Type Oil Free, Number of Cylinders 2, Output Power 1 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 120 psi, Maximum Vacuum 25 in Hg, Free Air Flow Rate 3.38 cfm, Maximum Speed 1,700 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
