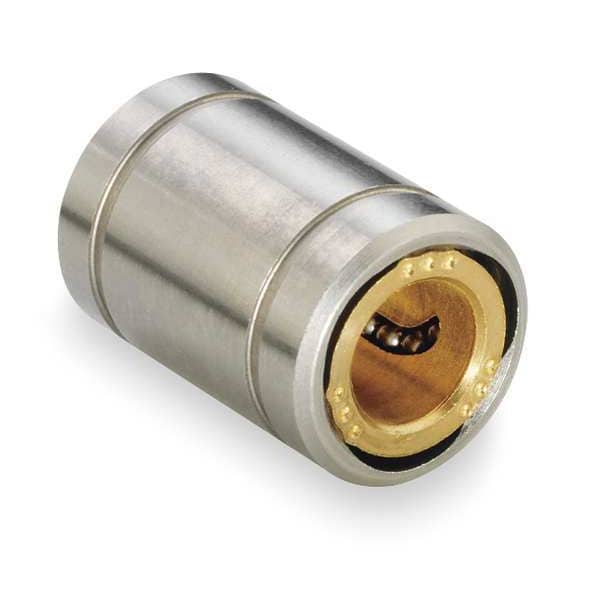

Ball Bushing, Bore Dia 0.188 In

THOMSON| Zoro #: G1742072| Mfr #: INST369SS

$127.40 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1742072 Mfr #: INST369SS
Dimension C2: 0.028Dimension C1: 0.417"
Dynamic Load Capacity (Lb.): 9Item: Ball Bushing Bearing
Type: ClosedInside Dia. Tolerance: +/- .003
Slot Width (In.): -Slot Angle (Degrees): -
Between Grooves (mm): 0.417"Length (In.): 0.562
Accelerated Speed: -Steady State Speed: -
Temp. Range (F): 0 - 600Seal: -
Material: Stainless SteelRequired Housing Bore Dia. (In.): 0.375
Dimension HA: -Slot Width (mm): -
Dimension K: -Dimension d: -
Dimension H3: -Max. Pv: -
Dimension H2: -Dimension G: -
Self-Alignment: -Retention Hole Location: -
Dimension B2: -Agency Compliance: -
Static Load Capacity (Lb.): -Retention Hole Dia. (mm): -
Length (mm): -Dimension YZ: -
Dimension T: -Outside Dia.: 0.3750"
Load Capacity: -Includes: -
Dimension XZ: -Dimension F: -
Bore Dia.: 0.188"Dimension JB: -
Dimension E: -Dimension JA: -
Dimension C: 0.562Dimension B: -
Dimension J: -Dimension Y: -
Dimension HB: -Outside Dia. Tolerance: -
Dimension X: -Required Housing Bore Dia. (mm): -
Country of Origin (subject to change): Mexico

Product Description

Ball Bushing, Closed, Bore Dia 0.188 In, Inside Dia Tolerance +/- .003, Outside Dia 0.375 In, Required Housing Bore Dia 0.375 In, Between Grooves 0.417 In, Length 0.562 In, Dynamic Load Capacity 9 Lb, Temp Range 0 - 600 F, Stainless Steel Material, For Use With Thomson Shafting
