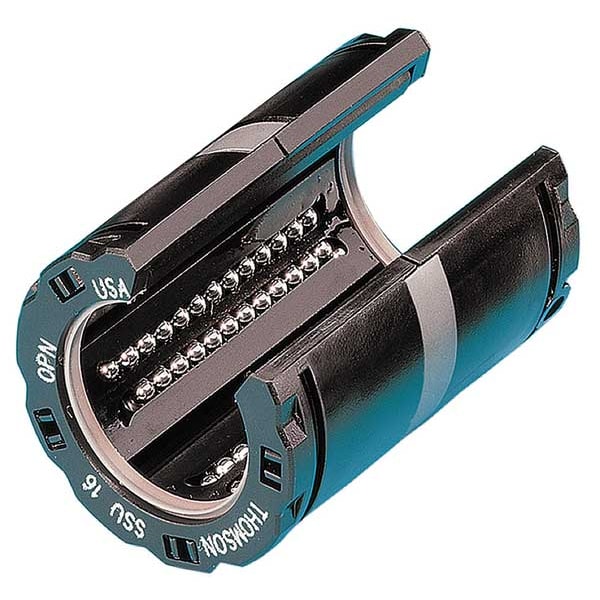

Ball Bushing, Open, Bore .500 In
- Mfr # SSU8OPN
- Zoro # G2573006
product price:Â
$
71.19
/ea
Key Features
Type
Open
Bore Dia.
0.5 in
Outside Dia.
7/8 in
Material
Delrin
Dynamic Load Capacity (Lb.)
360
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SSU8OPN
- Zoro #
- G2573006
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Bore Dia.
- 0.5 in
- Outside Dia.
- 7/8 in
- Length (In.)
- 1 1/4 in
- Slot Width (In.)
- 0.31 in
- Retention Hole Dia. (mm)
- 0.13 in
- Inside Dia. Tolerance
- -0.0005
- Shaft Dia. (In.)
- 0.5 in
- Inside Dia.
- 1/2 in
- Slot Width
- 0.31 in
- Inside Diameter
- 1/2 in
- Outside Diameter
- 7/8 in
- Inside Diameter Tolerance
- -0.0005 in
- Overall Length
- 1 1/4 in
- Retention Hole Diameter
- 0.13 in
- Wire Rope Length
- 1 1/4 in
- Length
- 1 1/4 in
Description
Linear Ball Bearing, System of Measurement Inch, Inside Diameter 1/2 in, Outside Diameter 7/8 in, Self-Alignment Self-Aligning, Overall Length 1 1/4 in, Dynamic Load Capacity 360 lbf, Material Delrin, Series Super Smart, Static Load Capacity 360 lbf, Steady State Speed -, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Open, Inside Diameter Tolerance -0.0005 in, Accelerated Speed 450 fps, Slot Width 0.31 in
