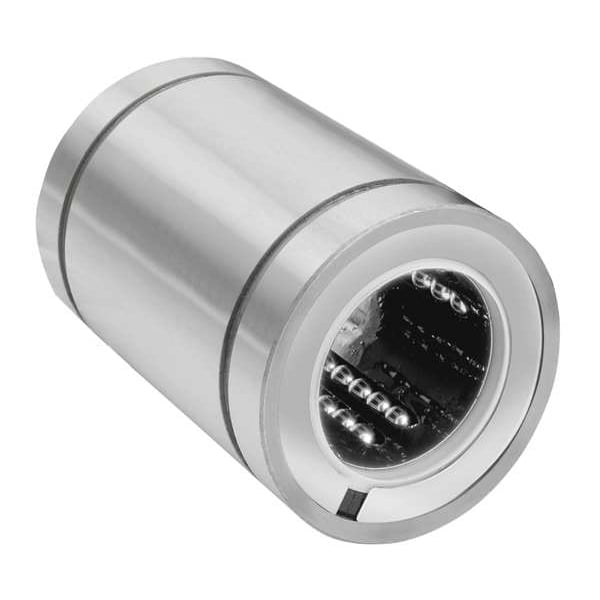

MultiTrac Bushing, Bore Dia 8 mm

THOMSON| Zoro #: G2034496| Mfr #: MAM08

$21.43 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2034496 Mfr #: MAM08
Steady State Speed: 3 Milimeters/SecondMaterial: Steel/Delrin
Accelerated Speed: 150 Milimeters/SecondTemp. Range (F): 0 - 185
Item: MultiTrac Bushing BearingDimension F: -
Slot Width (mm): -Slot Angle (Degrees): -
Retention Hole Dia. (mm): -Retention Hole Location: -
Dimension d: 8.00Dimension C2: 1.10
Dimension C1: 16.20 mmRequired Housing Bore Dia. (mm): 16
Type: ClosedInside Dia. Tolerance: + .009
Length (mm): 25Load Capacity: 180
Dimension Y: -Dimension JA: -
Dimension C: -Dimension X: -
Dimension J: -Dynamic Load Capacity (N): 180
Outside Dia. Tolerance: -Dimension K: -
Dimension HB: -Dimension H2: -
Dimension HA: -Max. Pv: -
Static Load Capacity (Lb.): -Dimension H3: -
Self-Alignment: -Required Housing Bore Dia. (In.): -
Dimension G: -Agency Compliance: -
Length (In.): -Dimension B2: -
Outside Dia.: 16mmSlot Width (In.): -
Includes: -Between Grooves (mm): 16.20 mm
Seal: -Dimension YZ: -
Dynamic Load Capacity (Lb.): -Dimension T: -
Dimension XZ: -Bore Dia.: 8mm
Dimension B: -Dimension JB: -
Dimension E: -Country of Origin (subject to change): Mexico

Product Description

MultiTrac Bushing, Closed, Bore Dia 8 mm, Inside Dia Tolerance + .009, Outside Dia 16 mm, Required Housing Bore Dia 16 mm, Between Grooves 16.20 mm, Length 25 mm, Load Capacity 180 N, Temp Range 0 - 185 F, Steel/Delrin Material, For Use With Thomson Shafting
