Shop THOMSON

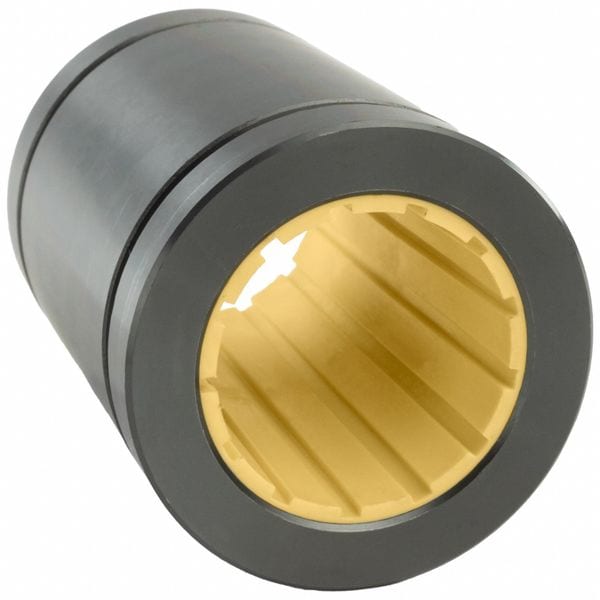

Polymer Bushing , 3/4 in ID

  • Mfr # PLM20
  • Zoro # G607032319
product price:
$
31.85
/ea

Key Features

Material
Anodized Aluminum; Polymer
Overall Length
1 3/4 in
Self-Alignment
Not Self-Aligning
Accelerated Speed
8 Meters/Second
Type
Closed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PLM20
Zoro #
G607032319
UPC #
-
Country of Origin
United States
Item
Polymer Bushing
Material
Anodized Aluminum; Polymer
Self-Alignment
Not Self-Aligning
Accelerated Speed
8 Meters/Second
Type
Closed
Series
PL
Liner
Polymer
Static Load Capacity
3,540.741 lbf
Max. Pv
0.4 N/sq mm-mps
For Use With
Class MM Shafting
Lubrication
Self Lubricating
Dynamic Load Capacity (N)
505.82 lbf
Dynamic Load Capacity
505.82 lbf
Static Load Capacity (N)
3,541 lbf
Bearing Type
Closed
Between Grooves (mm)
1.6002 mm
Maximum Operating Temperature
185 Degrees F
Housing Style
Single
System of Measurement
Inch
Minimum Operating Temperature
-58 Degrees F
Self-Lubrication
Self-Lubricating
Maximum PV
0.4 N/sq mm-mps
Between Grooves
1.228 in
Shell Material
Anodized Aluminum; Polymer

Dimensions

Overall Length
1 3/4 in
Dimension C
1.772 in
Inside Dia.
20 mm
Dimension C1
1.228 in
Outside Dia.
32 mm
Dimension C2
0.063 in
Dimension d
0.787 in
Length
1 3/4 in
Inside Dia. Tolerance
+0.030/+0.091
Inside Diameter
3/4 in
Inside Diameter Tolerance
+0.03/+0.091
Outside Diameter
1 1/4 in
Wire Rope Length
1 3/4 in

Description

Polymer plain linear bushing
