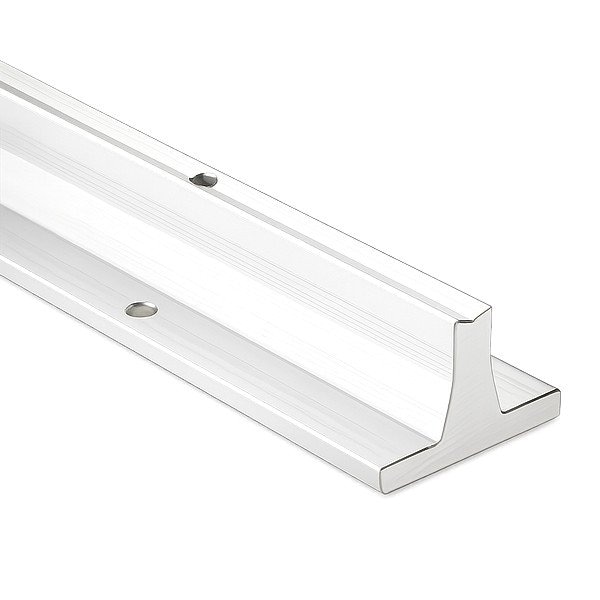

Support Rail, Aluminum, 24in L, 1.375in H
Mfr # SR8-PD
Zoro # G2534402
product price: $122.99
/ea
Free Shipping & Returns
Key Features
Shaft Dia.
1/2 in
Material
Aluminum
For Use With
60 Case Shafts
Finish
Unfinished
Mounting Hole Size
0.169
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SR8-PD
Zoro #
G2534402
UPC #
-
Country of Origin
Unknown
Dimensions
Shaft Dia.
1/2 in
Length
24 in
Mounting Hole Size
0.169
Base Height (In.)
0.188 in
Thread Size
0.17 in
Dimension E
1 in
Bolt Size
#6
Travel Length (mm)
1200
Dimension B
1.5 in
Dimension M
8.69"
Base Width (In.)
1.5 in
Dimension C
0.25 in
Overall Width
1.5 in
Compatible Shaft Diameter
1/2 in
Overall Length
24 in
Mystery Dimension
1.375 in
Base Height
0.19 in
Description
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Unfinished, Mounting Surface to Shaft Center 1.125 in, Overall Width 1.5 in, Overall Height Not Applicable, Mystery Dimension 1.375 in, Thread Size 0.17 in, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2 in, Base Height 0.19 in, Profile Type Standard Profile, Bolt Size #6, For Use With 60 Case Shafts, Mounting Hole Size 0.169
