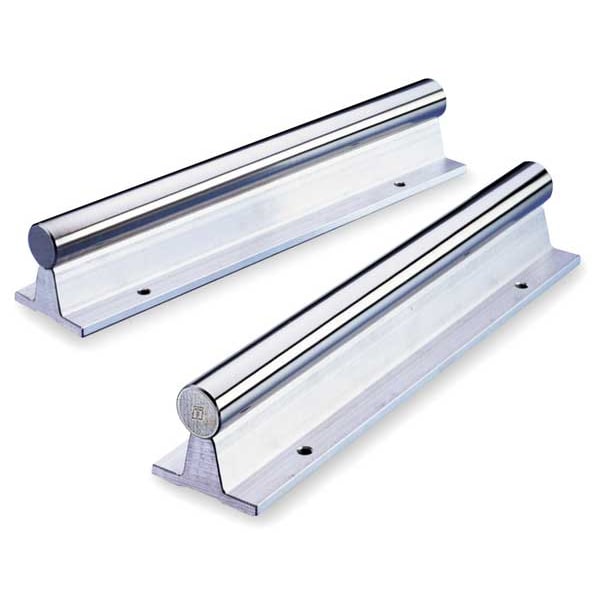

Support Rail, Aluminum, 24in L, 2.25in H
Mfr # SR16-PD
Zoro # G3410486
product price:Â $191.99
/ea
Free Shipping & Returns
Key Features
Shaft Dia.
1 in
Material
Aluminum
Mounting Hole Size
0.281
Mounting Hole from Shaft End
3 in
Dimension E
1.5 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- SR16-PD
- Zoro #
- G3410486
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 1 in
- Length
- 24 in
- Mounting Hole Size
- 0.281
- Dimension E
- 1.5 in
- Dimension C
- 0.5 in
- Bolt Size
- 1/4
- Base Width (In.)
- 2.125 in
- Base Height (In.)
- 0.25 in
- Dimension B
- 2.125 in
- Thread Size
- 0.28 in
- Overall Width
- 2.13 in
- Overall Length
- 24 in
- Base Height
- 0.25 in
- Mystery Dimension
- 2.25 in
- Compatible Shaft Diameter
- 1 in
Description
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Unfinished, Mounting Surface to Shaft Center 1.75 in, Overall Width 2.13 in, Overall Height Not Applicable, Mystery Dimension 2.25 in, Thread Size 0.28 in, Mounting Hole Center to Center 6 in, Mounting Hole Center to Shaft End 3 in, Base Height 0.25 in, Profile Type Standard Profile, Bolt Size 1/4, For Use With 60 Case Shafts, Mounting Hole Size 0.281, Compatible Shaft Diameter 1 in
