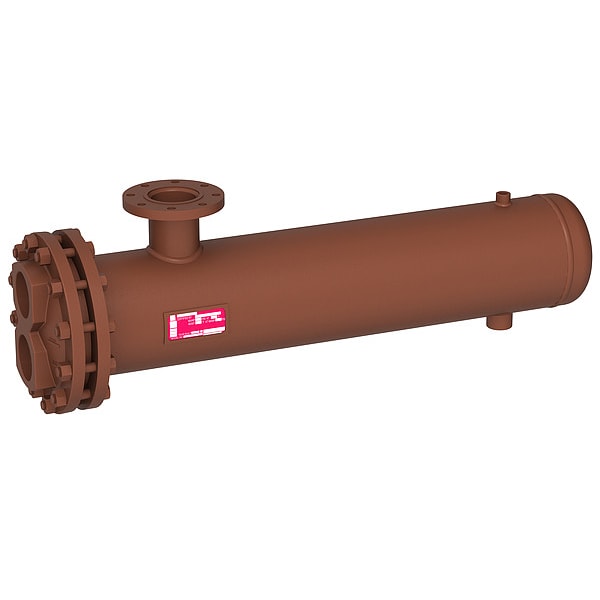

Steam-Water Heat Exchanger, 1,414,000BtuH
Mfr # TS10-048-222BS-SSCI-SX-CCC-01-66G2
Zoro # G600488250
product price:Â $8,868.99
/ea
Additional $495.00 delivery surcharge applies per item.
Key Features
Type
Shell and Tube
Max. BtuH (Water to Water Application)
1,414,000 BtuH
Pressure
Shell 150 PSI, Tube 125 PSI
Temp. (F)
Max 375 Degrees F
Construction Material
¾ in 20ga Copper Tubes, Carbon Steel Baffle, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TS10-048-222BS-SSCI-SX-CCC-01-66G2
- Zoro #
- G600488250
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Length (In.)
- 56.375 in
- Depth (In.)
- 16 in
- Height (In.)
- 16 in
- Width (In.)
- 16 in
- Overall Width
- 16 in
- Shell Outside Diameter
- 10 in
- Shell Pipe Connection Size
- 4 in
- Overall Height
- 16 in
- Tube Pipe Connection Size
- 4 in
- Tube Length
- 56 3/8 in
Description
Heat Exchanger, Heat Dissipation Capacity for Water 1,414,000 BtuH, Heat Dissipation Capacity for Oil Not Applicable, Total Surface Area 56.5 sq ft, Shell Outside Diameter 10 in, Tube Length 56 3/8 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 2, Shell Maximum Pressure Rating 150 psig, Shell Maximum Operating Temperature 375 Degrees F, Tube Maximum Pressure Rating 125 psig, Tube Maximum Operating Temperature 400 Degrees F, Fluid Compatibility Steam, Water
