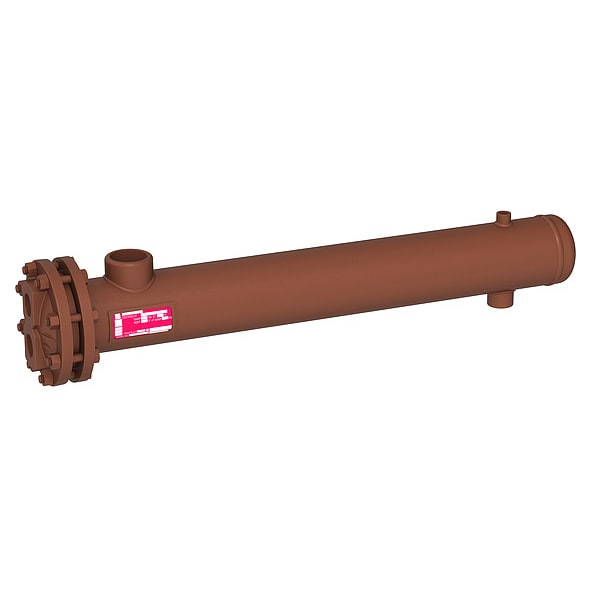

Steam-Water Heat Exchanger, 429,000 BtuH
Mfr # TS06-048-222BS-SSCI-SX-CCC-11-3352
Zoro # G700488266
product price: $4,578.99
/ea
Additional $145.00 delivery surcharge applies per item.
Key Features
Type
Shell and Tube
Max. BtuH (Water to Water Application)
429,000 BtuH
Pressure
Shell 150 PSI, Tube 150 PSI
Temp. (F)
Max 375 Degrees F
Construction Material
¾ in 20ga Copper Tubes, Carbon Steel Baffle, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
TS06-048-222BS-SSCI-SX-CCC-11-3352
Zoro #
G700488266
UPC #
-
Country of Origin
United States
Dimensions
Width (In.)
11 in
Height (In.)
11 in
Length (In.)
54 in
Depth (In.)
11 in
Shell Outside Diameter
6 in
Tube Length
54 in
Overall Height
11 in
Tube Pipe Connection Size
2 in
Shell Pipe Connection Size
3 in
Overall Width
11 in
Description
Heat Exchanger, Heat Dissipation Capacity for Water 429,000 BtuH, Heat Dissipation Capacity for Oil Not Applicable, Total Surface Area 17.3 sq ft, Shell Outside Diameter 6 in, Tube Length 54 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 2, Shell Maximum Pressure Rating 150 psig, Shell Maximum Operating Temperature 375 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 400 Degrees F, Fluid Compatibility Steam, Water, Overall Height 11 in
