  5. Steam-Water Heat Exchanger, 478,000 BtuH

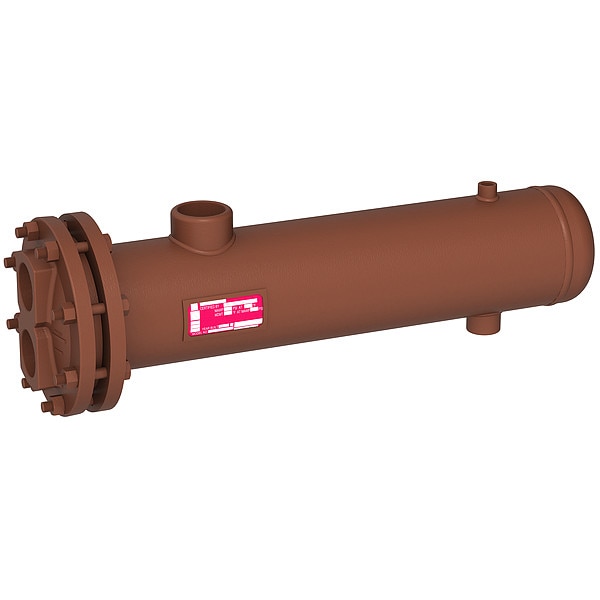

Thrush Steam-Water Heat Exchanger, 478,000 BtuH TS08-036-2XXXX-SSCI-SX-CCC-11-5552 - main

Steam-Water Heat Exchanger, 478,000 BtuH

  • Mfr # TS08-036-2XXXX-SSCI-SX-CCC-11-5552

  • Zoro # G600488199

product price:  $5,354.99
/ea
Item requires special delivery charges. A $185.00 per item surcharge will be applied.

Key Features

Type
Shell and Tube
Max. BtuH (Water to Water Application)
478,000 BtuH
Pressure
Shell 150 PSI, Tube 150 PSI
Temp. (F)
Max 375 Degrees F
Construction Material
¾ in 20ga Copper Tubes, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TS08-036-2XXXX-SSCI-SX-CCC-11-5552
Zoro #
G600488199
UPC #
-
Country of Origin
United States

Dimensions

Depth (In.)
13.5 in
Width (In.)
13.5 in
Length (In.)
42.8 in
Height (In.)
13.5 in
Shell Outside Diameter
8 in
Overall Width
13 1/2 in
Shell Pipe Connection Size
3 in
Overall Height
13 1/2 in
Tube Length
42 3/4 in
Tube Pipe Connection Size
3 in

Details

Item
Heat Exchanger
Type
Shell and Tube
Max. BtuH (Water to Water Application)
478,000 BtuH
Pressure
Shell 150 PSI, Tube 150 PSI
Temp. (F)
Max 375 Degrees F
Construction Material
¾ in 20ga Copper Tubes, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head
Connection
Condensate 1.5 in NPT, Steam 3 in NPT, Tube 3 in NPT, Vent 3/4 in NPT
Capacity (GPM)
211 gpm
Agency Compliance
ASME Section VIII div. 1, National Board Registered
Weight (Lbs.)
220 lb
Number of Passes
2
Shell Material
Carbon Steel
Shell Maximum Operating Temperature
375 Degrees F
Heat Exchanger Type
U-Tube
Tube Flow Capacity
49 gpm
Shell Maximum Pressure Rating
150 psig
Tube Maximum Operating Temperature
400 Degrees F
Tube Material
Copper
Standards
ASME Section VIII Div. 1
Tube Maximum Pressure Rating
150 psig
Total Surface Area
23.5 sq ft
Shell Flow Capacity
211 gpm
Shell Pipe Connection Type
NPT
Application
Air Conditioning, Heat Recovery, Liquid Heating and Cooling, Heating Systems
Heat Dissipation Capacity for Water
478,000 BtuH

Description

This item is a shell and tube heat exchanger rated for transferring heat between liquid streams in water-to-water systems. It uses a U-tube configuration with copper tubes housed within a carbon steel shell for operation within the specified temperature and pressure limits. The unit includes multiple NPT connections for steam, condensate, tube-side flow, and venting, and is rated for operation within the specified thermal and flow capacities.

Key Features:

  • Heat Exchanger Type: Shell and tube design with a U-tube configuration that accommodates thermal expansion.
  • Heat Transfer Capacity: Rated for up to 478,000 BtuH in water-to-water applications.
  • Pressure Ratings: Shell and tube rated for up to 150 psig.
  • Temperature Ratings: Shell rated up to 375°F; tube rated up to 400°F.
  • Flow Capacity: Shell flow capacity up to 211 gpm; tube flow capacity up to 49 gpm.
  • Construction Materials: Copper tubes with a carbon steel shell, tubesheet, and cast iron head.
  • Connections: NPT connections including 3 in steam and tube, 1.5 in condensate, and 3/4 in vent.
  • Surface Area: Total heat transfer surface area of 23.5 sq ft.
  • Standards: Constructed in accordance with ASME Section VIII Division 1 and National Board registration.
