Steam-Water Heat Exchanger, Shell-and-Tume, 1, 132,000 BtuH (TS08-060-222BS SSCI-SX-CCC-11-55G2)

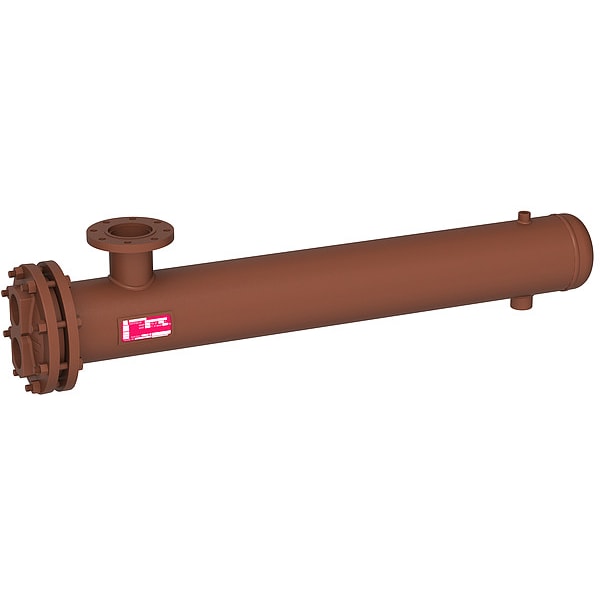

The THRUSH TS08-060-222BS-SSCI-SX-CCC-11-55G2 Steam-Water Heat Exchanger is a shell-and-tube type heat exchanger designed for heating, cooling, and heat recovery in liquid-based and air conditioning systems. It provides a heat transfer capacity of 1,132,000 BtuH and supports flow rates up to 211 gpm through the shell and 116 gpm through the tube side. The unit features a two-pass U-tube configuration for efficient thermal exchange and operates at a maximum pressure of 150 psig and temperatures up to 375°F on the shell side and 400°F on the tube side. Constructed with a carbon steel shell and copper tubes, it combines strength and corrosion resistance for dependable performance.

Key Features:

• Type: Shell-and-tube, U-tube heat exchanger
• Heat Transfer Capacity: 1,132,000 BtuH
• Flow Capacity: Shell 211 gpm; Tube 116 gpm
• Pressure Ratings: 150 psig maximum on shell and tube sides
• Temperature Limits: 375°F (shell side), 400°F (tube side)
• Construction: Carbon steel shell, baffle, and tubesheet; copper tubes; cast iron head
• Connections: Steam inlet 4 in flanged, tube side 3 in NPT, condensate outlet 1.5 in NPT, vent 3/4 in NPT
• Surface Area: 40.8 sq ft total heat transfer surface
• Dimensions: 66.8 in L × 13.5 in W × 13.5 in H; weight 285 lb
• Standards: ASME Section VIII Div. 1 and National Board registered
• Applications: Air conditioning, liquid heating and cooling, heat recovery, and heating systems
