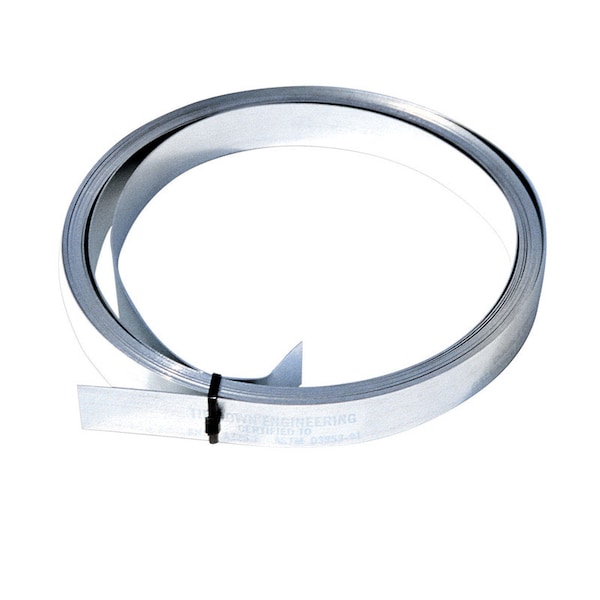

Tie Down Engineering Galvanized Strap

HUD code 3280 and 3285(2) require 1-1/4 in. x .035 in. or larger steel strapping conforming to ASTM D3953-97, standard specifications for strapping, flat steel and seals. Type 1, Grade 1, Finish B, with a minimum total capacity of 4,725 lbs. and a working capacity of 3,150 lbs. marked every 5 ft. The straps must be provided with protections against weather deterioration and corrosion at least equivalent to that provided by a coating of zinc on steel of not less than 30 oz./ft. of surface coated. Slit or cut edges of coated strapping need not be zinc coated. For use with tie-down manufactured home anchors (sold separately) Steel construction 35 ft. L Galvanized finish Conforms to ANSI A 225.1 ASTM D3953-91 and HUD specifications for manufactured applications Install with a slotted bolt inserted into the anchor head (bolt sold separately).

• • Tie downMinimum tensile strength of 4750 lb marked and certified galvanized strapping conforms to NCS BCS A225.1 (ANSI A119.1) and HUD specification for mobile home applications
• • 35 ft. galvanized strap for mobile home anchoring
• • Corrosion-resistant galvanized steel for all-weather performance
• •
• •
