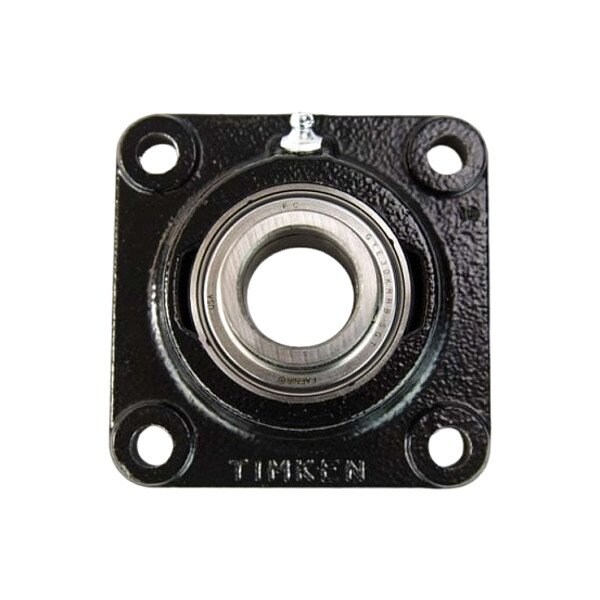

Flange Mount Ball
Mfr # YCJM 2 1/4
Zoro # G815549067
product price: $340.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
6 7/8 in
System of Measurement
Inch
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YCJM 2 1/4
Zoro #
G815549067
UPC #
-
Country of Origin
United States
Dimensions
Overall Height
6 7/8 in
Mount Hole Center-to-Center Length
5 5/8 in
Flange Thickness
11/16 in
Mount Hole Center-to-Center Height
5 5/8 in
Mount Hole Size
5/8 in
Bore Diameter Tolerance
-0.001 in
Inner Ring Width
2.562 in
Mounting Bolt Size
5/8 in
Overall Length
6 7/8 in
Back Side to Center Width
1.386 in
Center Height
3 7/16 in
Bore Diameter
2 1/4 in
Overall Width
2 59/64 in
Description
Flange Mount Bearing, Back Side to Center Width 1.386 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 1/4 in, Bore Type Cylindrical, Center Height 3 7/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing GY1204KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
