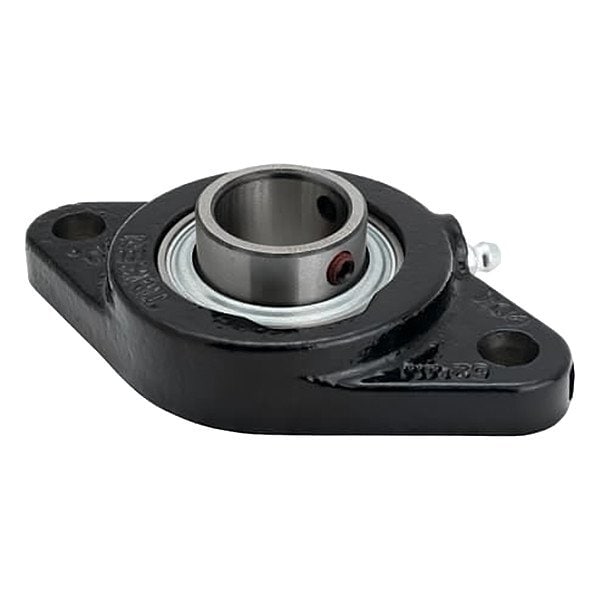

Flange Mount Ball
Mfr # YCJTM 1 15/16
Zoro # G215563397
product price: $291.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
5 in
Center Height
2 1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YCJTM 1 15/16
Zoro #
G215563397
UPC #
-
Country of Origin
Canada
Dimensions
Overall Height
5 in
Center Height
2 1/2 in
Bore Diameter Tolerance
-0.0005 in
Overall Length
8 1/2 in
Mount Hole Center-to-Center Length
7 1/4 in
Inner Ring Width
2.187 in
Bore Diameter
1 15/16 in
Back Side to Center Width
0.608 in
Mount Hole Size
5/8 in
Overall Width
2 17/32 in
Flange Thickness
21/32 in
Mounting Bolt Size
5/8 in
Description
Flange Mount Bearing, Back Side to Center Width 0.608 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 15/16 in, Bore Type Cylindrical, Center Height 2 1/2 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYM1115KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
