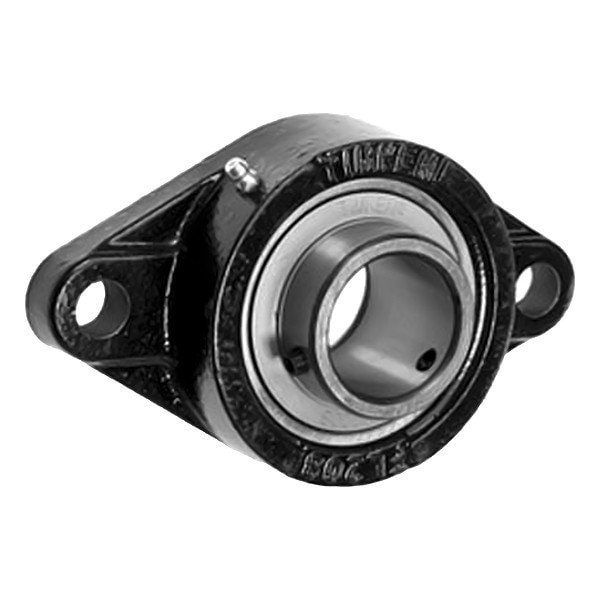

Flange Mount Bearing, AS, 15 mm dia
Mfr # UCFL202
Zoro # G615563362
product price: $66.49
/eaKey Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
60 mm
Inner Ring Width
1.22 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UCFL202
Zoro #
G615563362
UPC #
-
Country of Origin
Canada
Dimensions
Overall Height
60 mm
Inner Ring Width
1.22 in
Flange Thickness
11 mm
Bore Diameter
15 mm
Mount Hole Center-to-Center Length
90 mm
Mounting Bolt Size
M10
Center Height
30 mm
Back Side to Center Width
15 mm
Overall Length
113 mm
Mount Hole Size
M10
Overall Width
33.3 mm
Description
Flange Mount Bearing, Back Side to Center Width 15 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 15 mm, Bore Type Cylindrical, Center Height 30 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC202, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 11650 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
