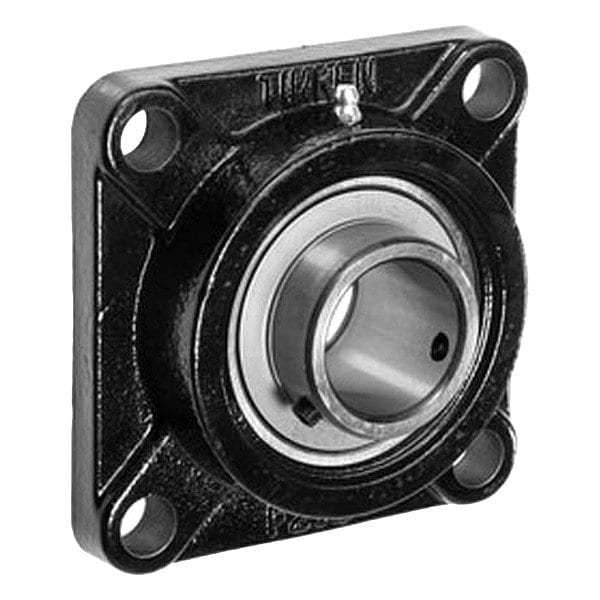

Flange Mount Bearing, AS, 2 in dia
Mfr # UCF210-32
Zoro # G315563426
product price: $150.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
5 5/8 in
Mount Hole Center-to-Center Height
4 23/64 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UCF210-32
Zoro #
G315563426
UPC #
-
Country of Origin
Canada
Dimensions
Overall Height
5 5/8 in
Mount Hole Center-to-Center Height
4 23/64 in
Center Height
2 13/16 in
Overall Width
2 9/64 in
Mount Hole Center-to-Center Length
4 23/64 in
Overall Length
5 5/8 in
Bore Diameter
2 in
Back Side to Center Width
0.866 in
Mount Hole Size
0.63 in
Flange Thickness
5/8 in
Inner Ring Width
2.031 in
Mounting Bolt Size
1/2 in
Description
Flange Mount Bearing, Back Side to Center Width 0.866 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height 2 13/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC210-32, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3400 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
