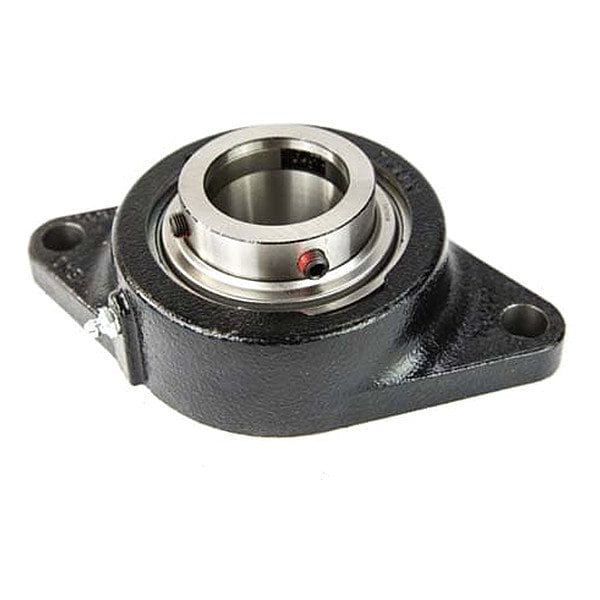

Flange Mount Bearing, AS, 20 mm dia
Mfr # YCJT 20 SGT
Zoro # G615549069
product price: $141.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
60.3 mm
Housing Material Grade
Cast Iron
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YCJT 20 SGT
Zoro #
G615549069
UPC #
-
Country of Origin
United States
Dimensions
Overall Height
60.3 mm
Overall Width
40 mm
Bore Diameter
20 mm
Overall Length
111.9 mm
Flange Thickness
11.1 mm
Inner Ring Width
31.8 mm
Center Height
30.15 mm
Mounting Bolt Size
M10
Mount Hole Size
M10
Mount Hole Center-to-Center Length
89.7 mm
Back Side to Center Width
19.3 mm
Description
Flange Mount Bearing, Back Side to Center Width 19.3 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Center Height 30.15 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYE20KRRB SGT, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 8750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
