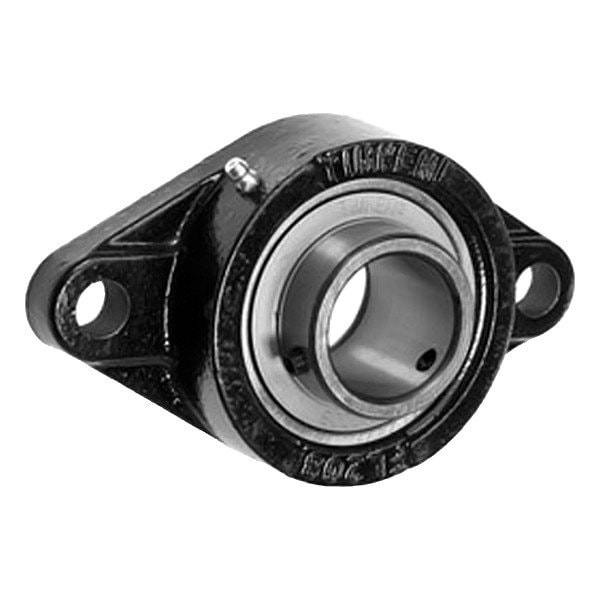

Flange Mount Bearing, AS, 3/4 in dia
Mfr # UCFL204-12
Zoro # G815549074
product price: $70.99
/eaKey Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
2 3/8 in
Overall Width
1 5/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UCFL204-12
Zoro #
G815549074
UPC #
-
Country of Origin
Canada
Dimensions
Overall Height
2 3/8 in
Overall Width
1 5/16 in
Mount Hole Center-to-Center Length
3 35/64 in
Center Height
1 3/16 in
Bore Diameter
3/4 in
Back Side to Center Width
0.594 in
Overall Length
4 27/64 in
Flange Thickness
27/64 in
Inner Ring Width
1.22 in
Mount Hole Size
0.472 in
Mounting Bolt Size
3/8 in
Description
Flange Mount Bearing, Back Side to Center Width 0.594 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 3/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC204-12, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 8750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
