  11. Insert Bearing, Dia. 1-11/16 In, Setscrew
Shop All Insert Bearings
Timken

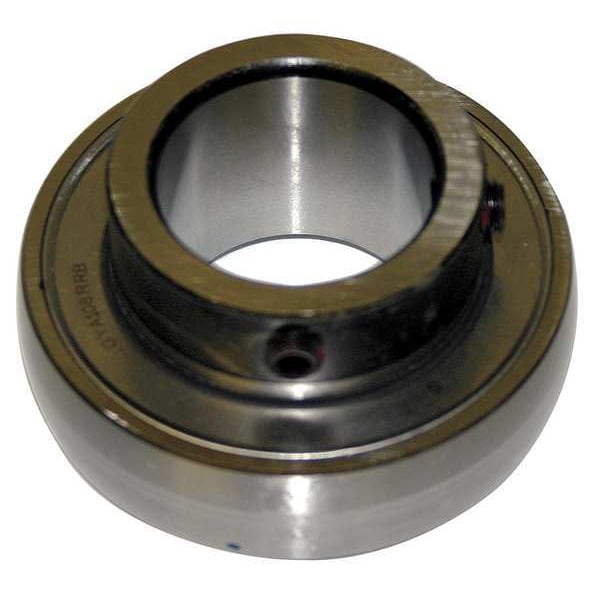

Insert Bearing, Dia. 1-11/16 In, Setscrew

product price: $91.59
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Dia. 1 11/16 in
  • Dynamic Load Capacity (Lb.) 8,150 lb
  • Series GYA-RRB
  • Bearing Material Stainless Steel
  • Width 42 mm
See all product information

Product Information

Dimensions

Bore Dia. 1 11/16 in
Width 42 mm
Inside Dia. 1 11/16 in
Outside Dia. 85 mm
Inner Ring Width 1.654 in
Inner Ring Outside Diameter 2.28 in
Ring End to Center Width 0.53 in
Outside Diameter 3 11/32 in
Outer Ring Width 0.866 in
Bore Diameter 1 11/16 in

Details

Item Insert Bearing
Dynamic Load Capacity (Lb.) 8,150 lb
Series GYA-RRB
Bearing Material Stainless Steel
Locking Type Setscrew
Rolling Element Material Grade 52100
Ring Material Grade 52100
Static Radial Load Capacity 4,451.438 lbf
Rolling Element Rows 1
Plain Bearing Material Steel
Seal Type Contact
Rolling Element Material Alloy Steel
Dynamic Radial Load Capacity 8,160.971 lbf
Load Direction Radial
Seal Material Rubber
Bearing Industry Number GYA111RRB
Ball Material Alloy Steel
Closure Double Sealed
Ball Material Grade 52100
System of Measurement Inch
Bearing Insert Shape Spherical
Maximum Temperature 250 Degrees F
Bearing Insert Type Radial/Deep Groove Ball
Ring Material Alloy Steel
Shaft Locking Type Set Screws

Description

Insert Bearing, Ball Material Alloy Steel, Bearing Industry Number GYA111RRB, Bearing Insert Type Radial/Deep Groove Ball, Bearing Insert Shape Spherical, Bore Diameter 1 11/16 in, Closure Double Sealed, Inner Ring Outside Diameter 2.28 in, Maximum Temperature 250 Degrees F, Outer Ring Width 0.866 in, Outside Diameter 3 11/32 in, Plain Bearing Material Steel, Ring Material Alloy Steel, Rolling Element Material Alloy Steel, Rolling Element Rows 1, Seal Type Contact, Shaft Locking Type Set Screws
