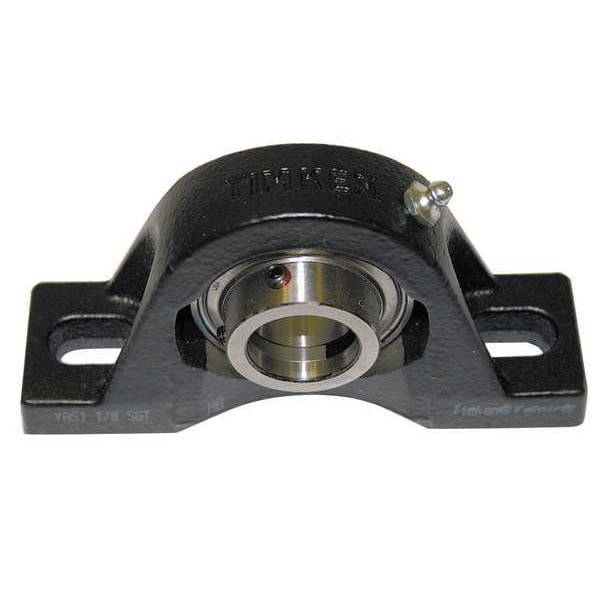

Pillow Block Bearing, Ball, 1" Bore
Mfr # YAS 1 SGT
Zoro # G6193722
product price: $122.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
4 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YAS 1 SGT
Zoro #
G6193722
UPC #
087796265790
Country of Origin
Multiple
Dimensions
Bore Dia.
1 in
Dimension F
1 21/64 in
Dimension B
1 3/8 in
Dimension A
1 15/32 in
Dimension L
5 1/2 in
Dimension H
1 7/16 in
Bolt Size
3/8 in
Overall Height
2.859 in
Dimension H2
2 7/8 in
Dimension H1
19/32 in
Dimension N
7/16 in
Dimension E
1 35/64 in
Dimension J
4 1/8 in
Overall Length
5.5 in
Overall Width
1.468 in
Inner Ring Width
1.372 in
Mount Hole Center-to-Center Length
4 1/8 in
Bore Diameter
1 in
Mount Hole Size
0.811 in x 0.437 in
Mounting Bolt Size
3/8 in
Base Height
0.594 in
Center Height
1 27/64 in
Description
Pillow Block Bearing, Base Height 0.594 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -65 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.859 in, Overall Length 5.5 in
