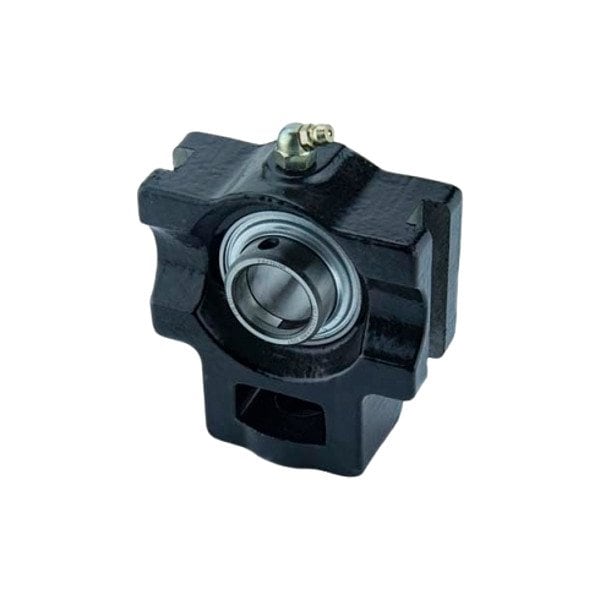

TAKE-UP BALL BEARING UNIT
Mfr # YTU 1 1/4 SGT
Zoro # G615563447
product price:Â
$
219.99
/ea
Free Shipping & Returns
Key Features
Expansion Type
Fixed
Overall Height
4.126 in
Compatible Frame
TU3 Frame
Closure
Double Sealed
Self Lubricating Bearing
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YTU 1 1/4 SGT
- Zoro #
- G615563447
- UPC #
- -
- Country of Origin
- Canada
- Item
- Take-Up Bearing Unit
- Expansion Type
- Fixed
- Compatible Frame
- TU3 Frame
- Closure
- Double Sealed
- Self Lubricating Bearing
- No
- Seal Type
- Shroud
- Slot Spacing
- 3.5 in
- Maximum Temperature
- 212 Degrees F
- Application
- Conveyors
- Housing Material
- Cast Iron
- Dynamic Load Capacity
- 6,400 lbf
- Rolling Element Rows
- 1
- Minimum Temperature
- -4 Degrees F
- Lubrication Openings
- Grease Fitting
- Shaft Locking Type
- Set Screws
- Included Bearing
- GY1104KRRB SGT
- System of Measurement
- Inch
- Bearing Material Grade
- AISI 52100
- Static Radial Load Capacity
- 3,400 lbf
- Bearing Insert Type
- Radial Ball
- Features
- Factory-Prelubricated, Incorporates Self-Aligning, B-Type Extra Wide-Inner-Ring Ball Bearings with Set Screw Lock, Incorporates Shaft Guarding Technology, Reduces Replacement Time
- Bearing Insert Material
- Steel
- Number of Rows
- 1
Description
Take-Up Bearing Unit, Bearing Insert Material Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Closure Double Sealed, Compatible Frame TU3 Frame, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing GY1104KRRB SGT, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Overall Height 4.126 in, Overall Length 4.874 in, Overall Width 1.984 in, Rod Hole Diameter 0.875 in, Rolling Element Rows 1, Seal Type Shroud, Self Lubricating Bearing No
