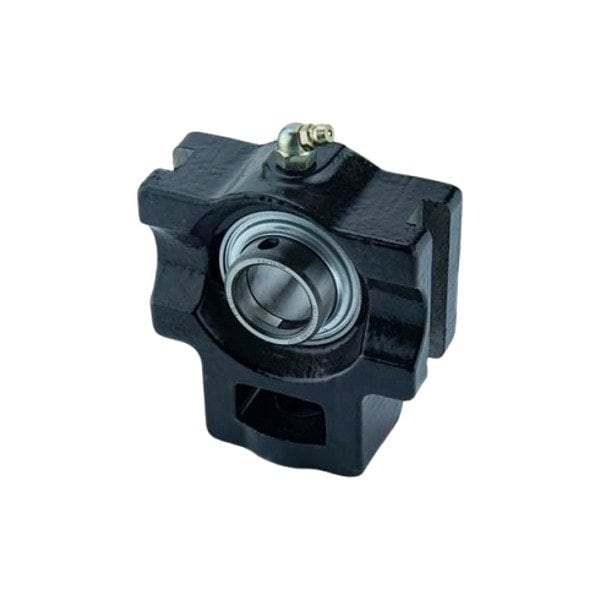

TAKE-UP BALL BEARING UNIT
Mfr # YTU1 SGT
Zoro # G515551117
product price: $178.99
/ea
Free Shipping & Returns
Key Features
Bore Diameter Tolerance
-0.0005 in
Overall Height
3.626 in
Bearing Insert Material
Steel
Dynamic Load Capacity
3,550 lbf
Lubrication Openings
Grease Fitting
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YTU1 SGT
Zoro #
G515551117
UPC #
-
Country of Origin
United States
Dimensions
Bore Diameter Tolerance
-0.0005 in
Overall Height
3.626 in
Overall Width
1.689 in
Slot Width
0.531 in
Inner Ring Width
1.372 in
Rod Hole Diameter
0.75 in
Bore Diameter
1 in
Overall Length
4.031 in
Description
Take-Up Bearing, Bearing Insert Material Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Closure Double Sealed, Compatible Frame TU1 Frame, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing GY1100KRRB SGT, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Overall Height 3.626 in, Overall Length 4.031 in, Overall Width 1.689 in, Rod Hole Diameter 0.75 in, Rolling Element Rows 1, Seal Type Shroud, Self Lubricating Bearing No
