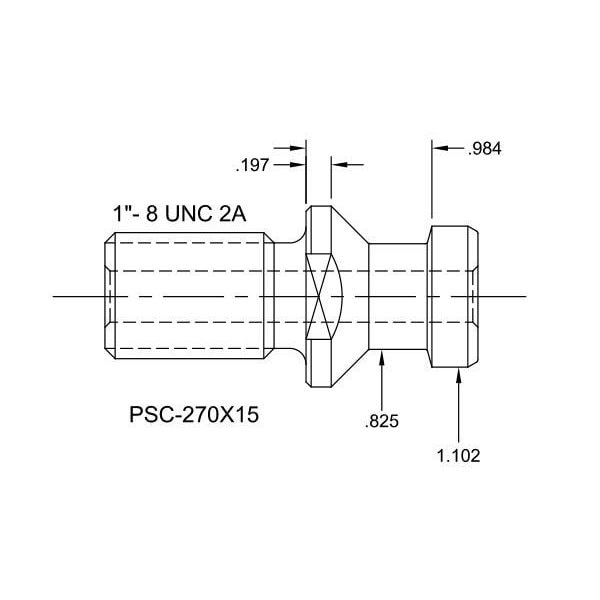

Coolant Through Retention Knob
Mfr # PSC-270X15
Zoro # G511178189
product price: $27.69
/eaKey Features
Thread Size
1"-8
Overall Length
2.916 in
Flange to Knob Length
1.344 in
Neck Dia.
0.825 in
Flange to Angle Length
0.984 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC-270X15
Zoro #
G511178189
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1"-8
Overall Length
2.916 in
Flange to Knob Length
1.344 in
Neck Dia.
0.825 in
Flange to Angle Length
0.984 in
Taper Size
CAT50
Details
Item
Coolant Through Retention Knob
Coolant Fed
Coolant Through
Number of O-Ring(s)
0
Knob Angle
15 Degrees
Description
PSC-270X15, CAT50 Coolant Through Retention Knob with a 15 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
