Coolant Through Retention Knob
Mfr # PSC-371
Zoro # G611178065
product price: $19.25
/eaKey Features
Thread Size
M12-1.75
Overall Length
1.74 in
Flange to Knob Length
0.95 in
Knob Angle
0.130 Full Radius
Taper Size
BT30
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC-371
Zoro #
G611178065
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M12-1.75
Overall Length
1.74 in
Flange to Knob Length
0.95 in
Taper Size
BT30
Neck Dia.
0.312 in
Flange to Angle Length
0.762 in
Details
Item
Coolant Through Retention Knob
Knob Angle
0.130 Full Radius
Number of O-Ring(s)
0
Coolant Fed
Coolant Through
Description

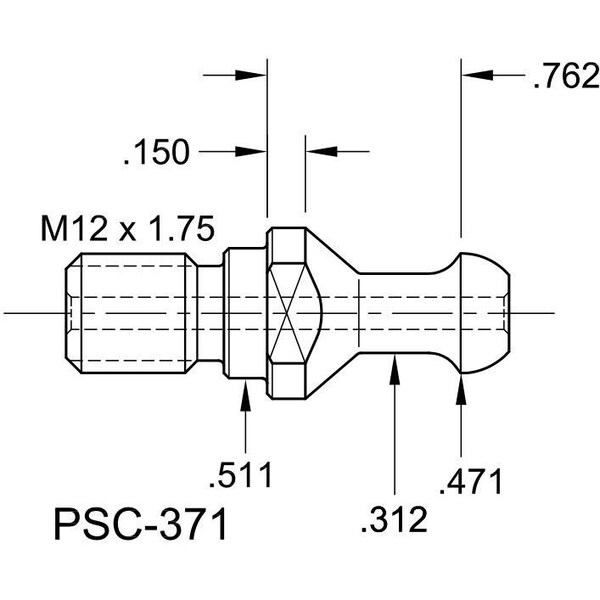

PSC-371, BT30 Coolant Through Retention Knob
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
