Coolant Through Retention Knob
Mfr # PSC-472 RFID
Zoro # G911178239
product price: $100.99
/ea
Free Shipping & Returns
Key Features
Thread Size
M16-2
Overall Length
1.624 in
Coolant Fed
Coolant Through
Taper Size
CAT40
Number of O-Ring(s)
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC-472 RFID
Zoro #
G911178239
UPC #
-
Country of Origin
United States

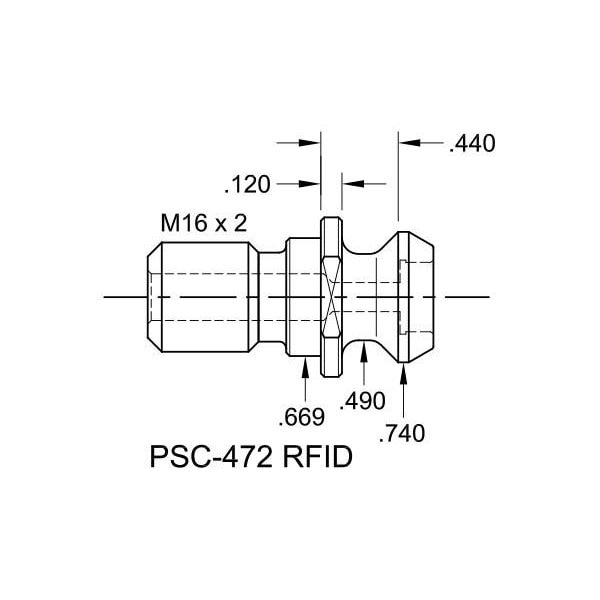

Dimensions
Thread Size
M16-2
Overall Length
1.624 in
Taper Size
CAT40
Flange to Angle Length
0.44 in
Neck Dia.
0.49 in
Flange to Knob Length
0.64 in
Details
Item
Coolant Through Retention Knob
Coolant Fed
Coolant Through
Number of O-Ring(s)
1
Knob Angle
45 Degrees
Description
PSC-472-RFID, CAT40 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
