Coolant Through Retention Knob
Mfr # PSC-474 RFID
Zoro # G011178269
product price: $112.99
/ea
Free Shipping & Returns
Key Features
Thread Size
5/8"-11
Overall Length
1.624 in
Flange to Knob Length
0.64 in
Flange to Angle Length
0.44 in
Taper Size
CAT40
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC-474 RFID
Zoro #
G011178269
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
5/8"-11
Overall Length
1.624 in
Flange to Knob Length
0.64 in
Flange to Angle Length
0.44 in
Taper Size
CAT40
Neck Dia.
0.49 in
Details
Item
Coolant Through Retention Knob
Number of O-Ring(s)
1
Coolant Fed
Coolant Through
Knob Angle
45 Degrees
Description

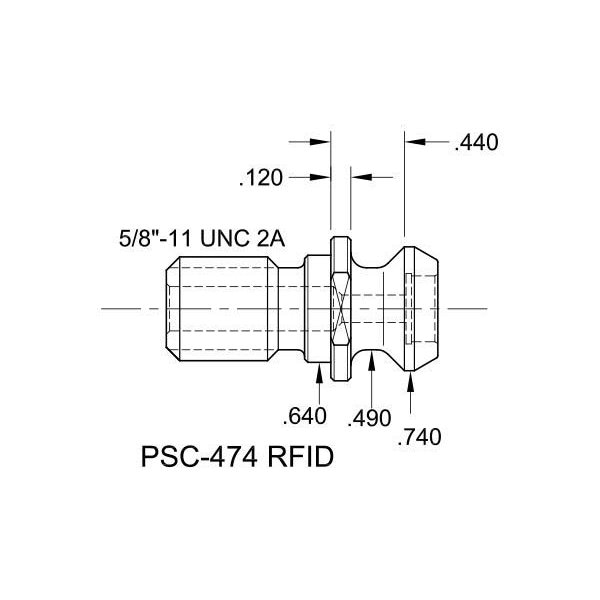

PSC-474 RFID, CAT40 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
