Coolant Through Retention Knob
Mfr # PSC-575
Zoro # G511178288
product price: $20.49
/eaKey Features
Thread Size
1/2"-13
Overall Length
1.1 in
Neck Dia.
0.385 in
Flange to Knob Length
0.46 in
Number of O-Ring(s)
0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC-575
Zoro #
G511178288
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1/2"-13
Overall Length
1.1 in
Neck Dia.
0.385 in
Flange to Knob Length
0.46 in
Taper Size
CAT30
Flange to Angle Length
0.32 in
Details
Item
Coolant Through Retention Knob
Number of O-Ring(s)
0
Knob Angle
45 Degrees
Coolant Fed
Coolant Through
Description

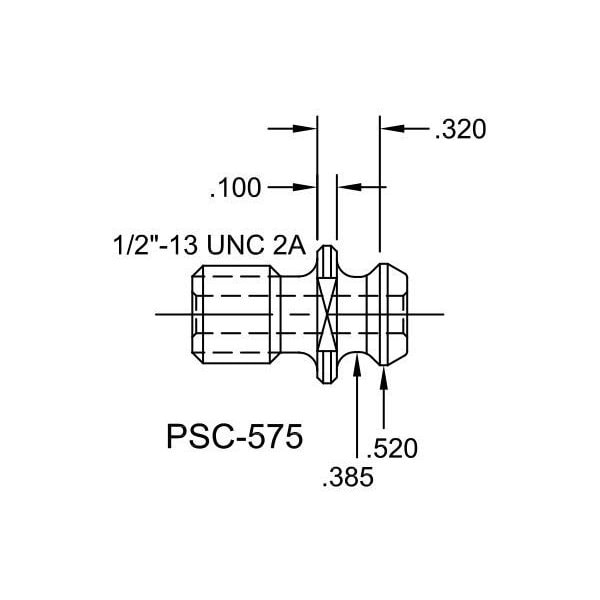

PSC-575, CAT30 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
