Coolant Through Retention Knob
Mfr # PSCO-435X15
Zoro # G411178203
product price: $33.49
/eaKey Features
Thread Size
M16-2
Overall Length
2.126 in
Neck Dia.
0.549 in
Knob Angle
15 Degrees
Number of O-Ring(s)
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSCO-435X15
Zoro #
G411178203
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M16-2
Overall Length
2.126 in
Neck Dia.
0.549 in
Taper Size
BT40
Flange to Knob Length
1.14 in
Flange to Angle Length
0.903 in
Details
Item
Coolant Through Retention Knob
Knob Angle
15 Degrees
Number of O-Ring(s)
1
Coolant Fed
Coolant Through
Description

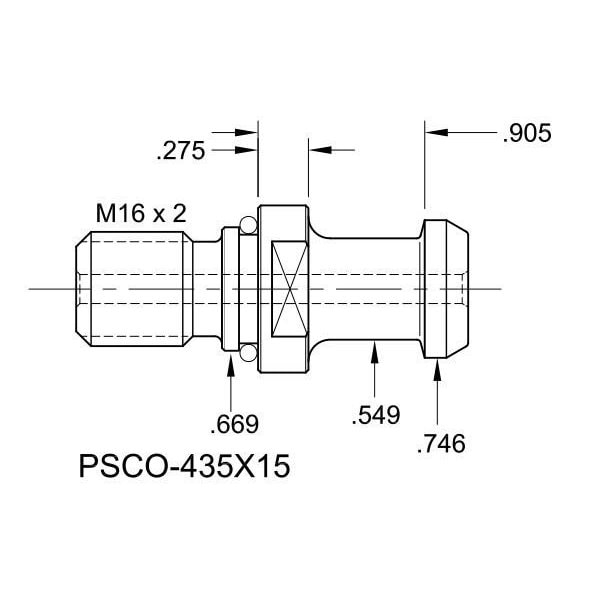

PSCO-435X15, BT40 Coolant Through Retention Knob with a 15 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
