Coolant Through Retention Knob
Mfr # PSCO-532X90
Zoro # G511178080
product price: $31.65
/eaKey Features
Thread Size
5/8"-11
Overall Length
2.25 in
Coolant Fed
Coolant Through
Neck Dia.
0.392 in
Knob Angle
90 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSCO-532X90
Zoro #
G511178080
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
5/8"-11
Overall Length
2.25 in
Neck Dia.
0.392 in
Flange to Angle Length
0.988 in
Flange to Knob Length
1.266 in
Taper Size
CAT40
Details
Item
Coolant Through Retention Knob
Coolant Fed
Coolant Through
Knob Angle
90 Degrees
Number of O-Ring(s)
1
Description

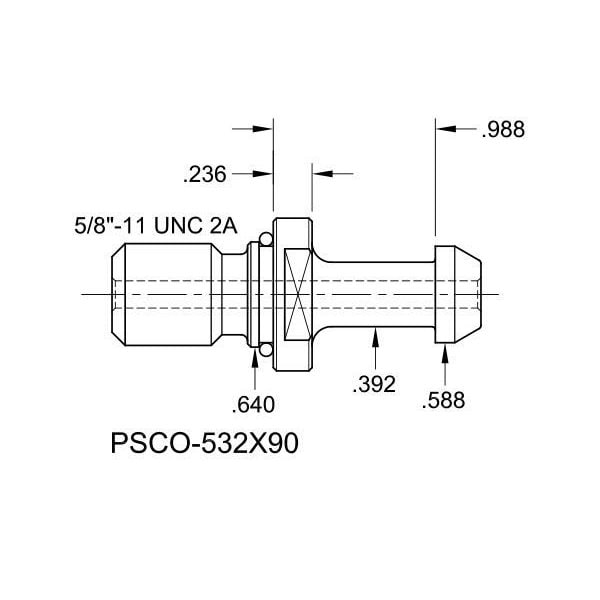

PSCO-532X90, CAT40 Coolant Through Retention Knob with a 90 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
