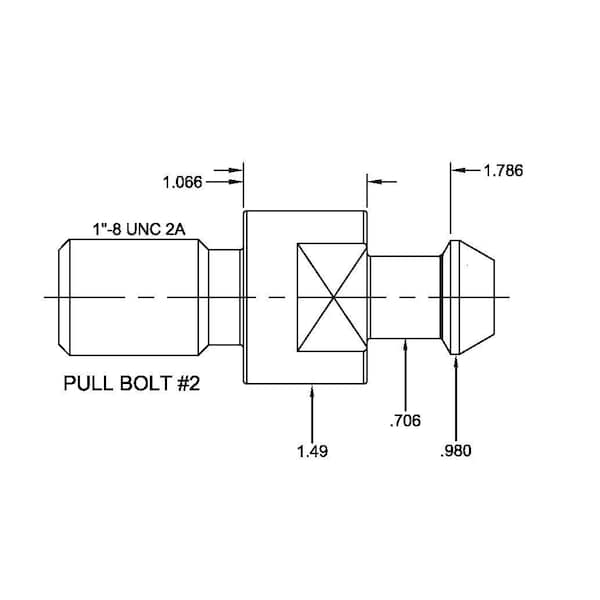

PULL BOLT
Mfr # PULL BOLT 2
Zoro # G011178245
product price: $54.99
/eaKey Features
Overall Length
3.75 in
Knob Angle
60 Degrees
Neck Dia.
0.706 in
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PULL BOLT 2
Zoro #
G011178245
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3.75 in
Neck Dia.
0.706 in
Taper Size
PB
Flange to Angle Length
1.786 in
Flange to Knob Length
2.162 in
Details
Item
Pull Bolt
Knob Angle
60 Degrees
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
