PULL BOLT
Mfr # PULL BOLT 4M
Zoro # G311178235
product price: $61.45
/eaKey Features
Overall Length
4.78 in
Neck Dia.
0.626 in
Knob Angle
60 Degrees
Flange to Angle Length
3.228 in
Number of O-Ring(s)
0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PULL BOLT 4M
Zoro #
G311178235
UPC #
-
Country of Origin
United States

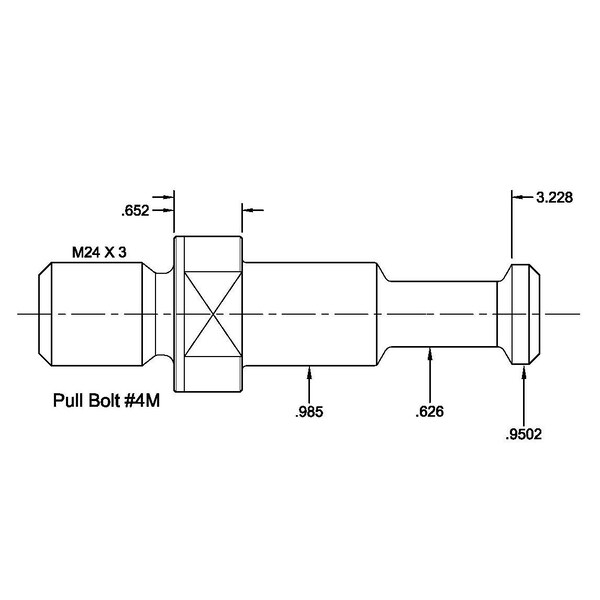

Dimensions
Overall Length
4.78 in
Neck Dia.
0.626 in
Flange to Angle Length
3.228 in
Flange to Knob Length
3.492 in
Taper Size
PB
Details
Item
Pull Bolt
Knob Angle
60 Degrees
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
