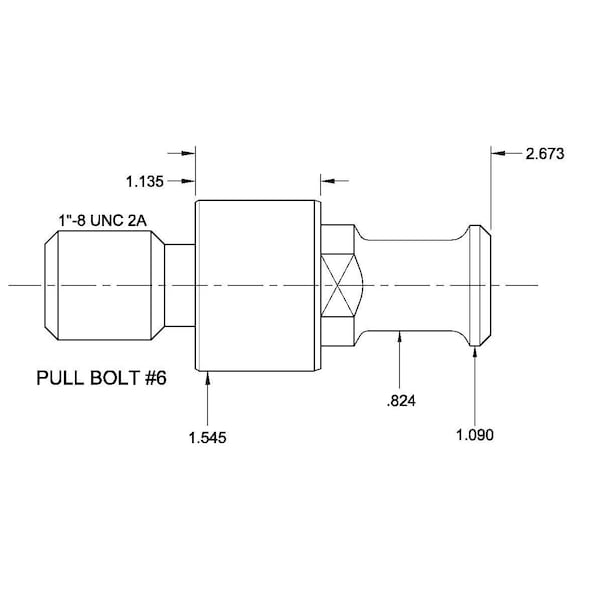

PULL BOLT
Mfr # PULL BOLT 6
Zoro # G011178214
product price: $61.45
/eaKey Features
Overall Length
4.033 in
Neck Dia.
0.824 in
Number of O-Ring(s)
0
Flange to Knob Length
2.673 in
Taper Size
PB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PULL BOLT 6
Zoro #
G011178214
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
4.033 in
Neck Dia.
0.824 in
Flange to Knob Length
2.673 in
Taper Size
PB
Flange to Angle Length
2.484 in
Details
Item
Pull Bolt
Number of O-Ring(s)
0
Coolant Fed
Coolant Through
Knob Angle
60 Degrees
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
