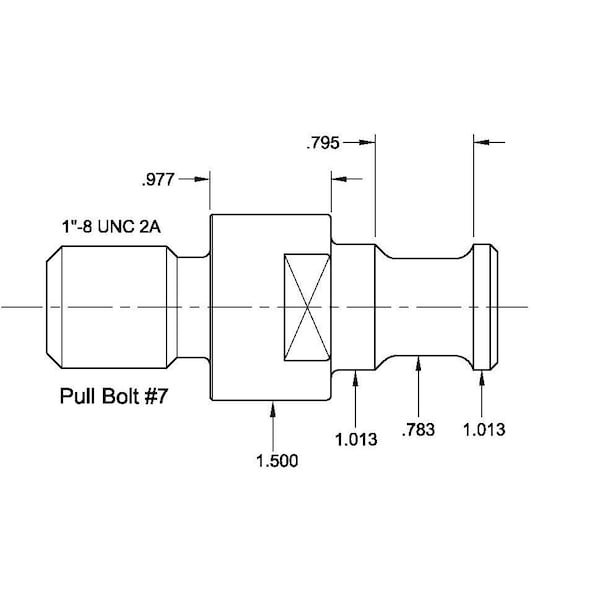

PULL BOLT
Mfr # PULL BOLT 7
Zoro # G711178156
product price: $61.45
/eaKey Features
Overall Length
3.635 in
Taper Size
PB
Flange to Angle Length
2.125 in
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PULL BOLT 7
Zoro #
G711178156
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3.635 in
Taper Size
PB
Flange to Angle Length
2.125 in
Flange to Knob Length
2.32 in
Neck Dia.
0.783 in
Details
Item
Pull Bolt
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Knob Angle
0.160 Full Radius
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
