PULL BOLT
Mfr # PULL BOLT 8
Zoro # G211178175
product price: $54.99
/eaKey Features
Overall Length
3.457 in
Number of O-Ring(s)
0
Knob Angle
90 Degrees
Taper Size
PB
Neck Dia.
0.562 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PULL BOLT 8
Zoro #
G211178175
UPC #
-
Country of Origin
United States

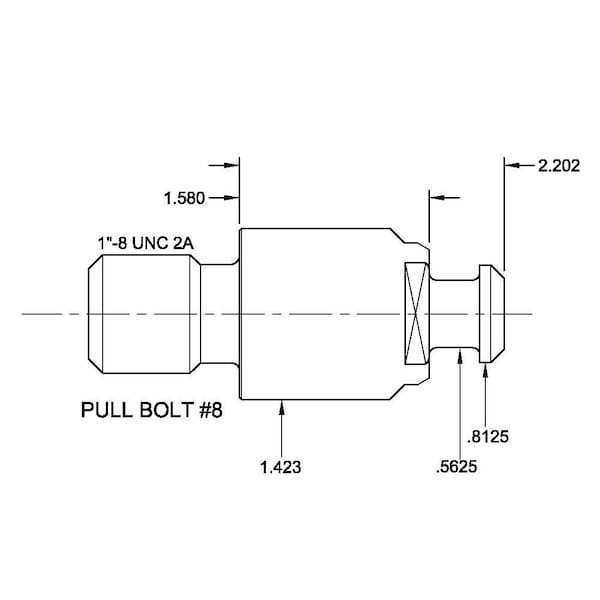

Dimensions
Overall Length
3.457 in
Taper Size
PB
Neck Dia.
0.562 in
Flange to Knob Length
2.202 in
Flange to Angle Length
2 in
Details
Item
Pull Bolt
Number of O-Ring(s)
0
Knob Angle
90 Degrees
Coolant Fed
Non-Coolant Through
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
