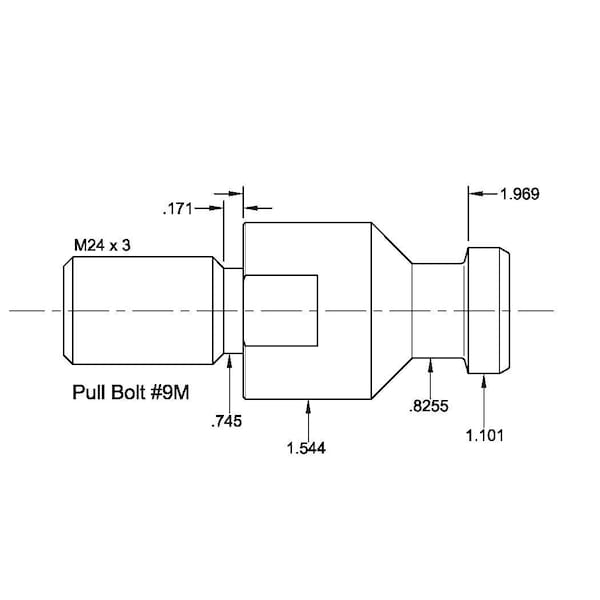

PULL BOLT
Mfr # PULL BOLT 9M
Zoro # G411178234
product price: $59.99
/eaKey Features
Overall Length
3.897 in
Flange to Knob Length
2.327 in
Number of O-Ring(s)
0
Knob Angle
15 Degrees
Flange to Angle Length
1.969 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PULL BOLT 9M
Zoro #
G411178234
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3.897 in
Flange to Knob Length
2.327 in
Flange to Angle Length
1.969 in
Taper Size
PB
Details
Item
Pull Bolt
Number of O-Ring(s)
0
Knob Angle
15 Degrees
Coolant Fed
Non-Coolant Through
Description
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
