Solid Retention Knob
Mfr # PS-272X60
Zoro # G611178201
product price: $25.95
/eaKey Features
Thread Size
M20-2.5
Overall Length
2.762 in
Coolant Fed
Non-Coolant Through
Flange to Angle Length
1.22 in
Flange to Knob Length
1.58 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-272X60
Zoro #
G611178201
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M20-2.5
Overall Length
2.762 in
Flange to Angle Length
1.22 in
Flange to Knob Length
1.58 in
Taper Size
BT-45
Neck Dia.
0.592 in
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Knob Angle
60 Degrees
Number of O-Ring(s)
0
Description

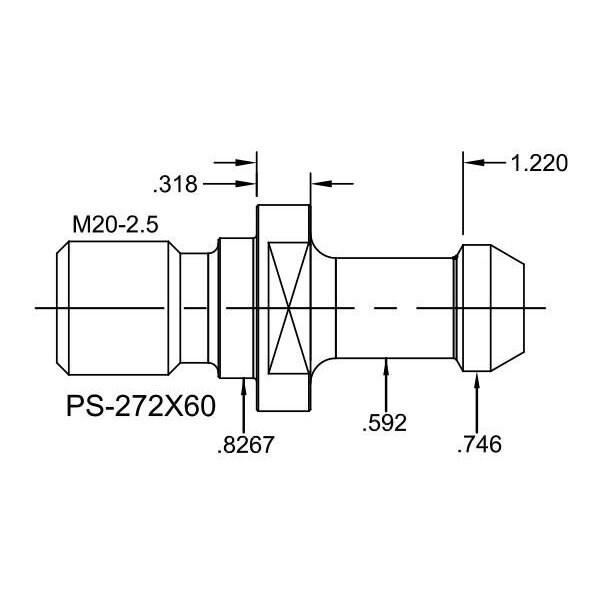

PS-272X60, BT45 Solid Retention Knob with a 60 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
