Solid Retention Knob
Mfr # PS-451
Zoro # G111178268
product price: $19.99
/eaKey Features
Thread Size
1"-8
Overall Length
3.354 in
Taper Size
CAT50
Knob Angle
90 Degrees
Number of O-Ring(s)
0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-451
Zoro #
G111178268
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1"-8
Overall Length
3.354 in
Taper Size
CAT50
Flange to Angle Length
1.24 in
Flange to Knob Length
1.634 in
Neck Dia.
0.668 in
Details
Item
Solid Retention Knob
Knob Angle
90 Degrees
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Description

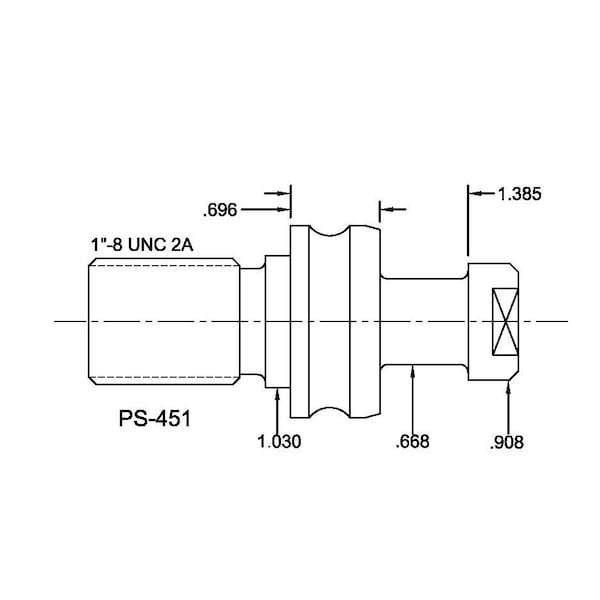

PS-451, CAT50 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
