Solid Retention Knob
Mfr # PS-475
Zoro # G311178129
product price: $15.39
/eaKey Features
Overall Length
1.5 in
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Flange to Angle Length
0.44 in
Neck Dia.
0.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PS-475
Zoro #
G311178129
UPC #
-
Country of Origin
United States

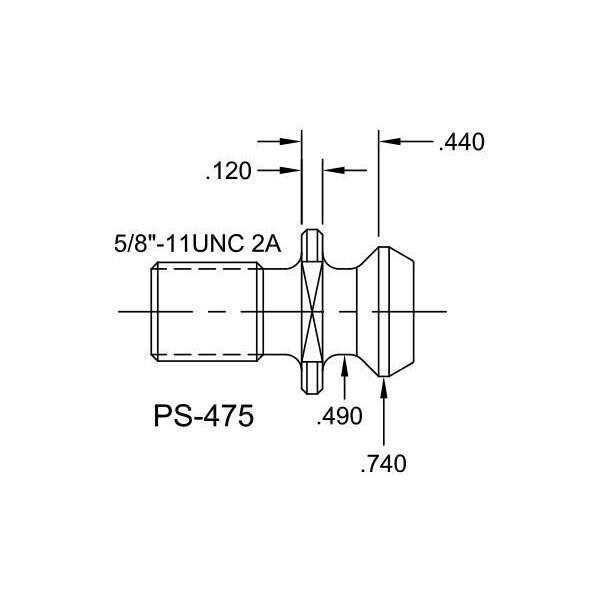

Dimensions
Thread Size
5/8"-11
Overall Length
1.5 in
Flange to Angle Length
0.44 in
Neck Dia.
0.49 in
Flange to Knob Length
0.64 in
Taper Size
CAT40
Details
Item
Solid Retention Knob
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Description
PS-475, CAT40 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
