Solid Retention Knob
Mfr # PS-482X45
Zoro # G111178152
product price: $34.19
/eaKey Features
Thread Size
M12-1.75
Overall Length
1.067 in
Coolant Fed
Non-Coolant Through
Neck Dia.
0.2345 in
Knob Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-482X45
Zoro #
G111178152
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M12-1.75
Overall Length
1.067 in
Neck Dia.
0.2345 in
Flange to Knob Length
0.54 in
Taper Size
BT30
Flange to Angle Length
0.394 in
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Description

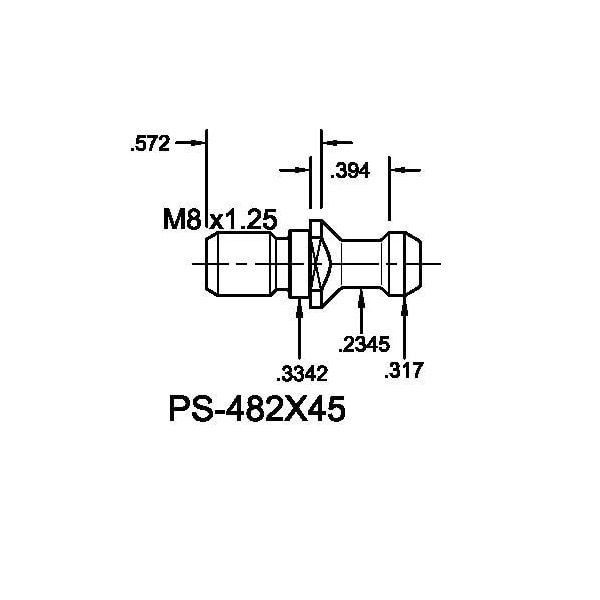

PS-482X45, BT30 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
